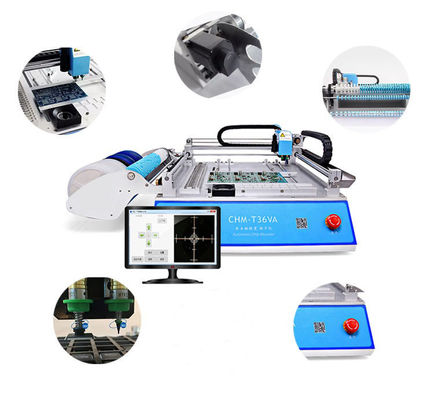

2 Heads 29 Feeders CHMT36VA Desktop SMD Pick And Place Machine + Two CCD Camera + External PC
CCD system Place IC , English version, 220v 110v
CHMT36VA working video:
www.youtube.com/watch?v=x2VVs3XdTnQ
CHMT36VA 0402 0603 0805:
www.youtube.com/watch?v=zs5b8tm1hyk
Buy it from our online store with lowest price directly:
CHMT36VA: https://www.charmhigh-smt.com/sale-448848-dhl-free-shipping-charmhigh-chmt36va-desktop-2-heads-smt-pick-and-place-machine-29-feeders-dual-cameras-pc-control.htm
Specifications:
| Model |
CHM-T36VA |
| PCB area |
10mm*10mm - 355mm*355mm |
| X Y axis Travel |
420*460mm |
| Z axis moving range |
15mm |
| Placement heads |
2pcs |
| Feeders |
8mm=22pcs, 12mm=4pcs, 16mm=2pcs, 24mm=1pcs,
Front IC tray=14pcs, user-defined IC tray
|
| Vision system |
Dual cameras(up & down cameras) |
| Drive |
Closed-loop control stepper servo drive system, make sure never lose step |
| Z axis self-return detection |
Yes, prevent nozzles breaking |
| Pull pin self-return |
Yes |
| Leakage of material detection method |
Vacuum detection, vision detection |
| Mounting speed |
4000cph (vision off); 2800cph (vision on) |
| Mounting precision |
±0.025mm |
| Components |
0402-5050,SOP,QFN,(tape width: 8MM,12MM,16MM,24MM) |
| Machine dimension |
L 960mm * W 705mm * H 335mm |
| Vacuum pump |
-92KPA (2pcs,build-in, mute type) |
| External air source |
No need (machine build-in mute vacuum pump 2pcs) |
| External PC |
Yes (software compatible with windows10) |
| Voltage |
220V (110V),50/60Hz |
| Net weight |
50kg |
| Gross weight |
76kg / 106*78*50cm / 0.41m³ |
Description:
CHMT36VA is an economical vision pick and place machine which need connect externel PC with windows 7 system. This is reliable, small platform machine comes with advance vision system, closed-loop control, 29pcs material stacks. High precision and easy operation software. You just need to prepare a computer which has USB port.
Applications industry:
Household appliances industry, Auto electronics industry, Power industry, LED industry, security,instruments and meters industry, communications industry, intelligent control industry, Internet of Things(IOT) industry and military industry, etc.

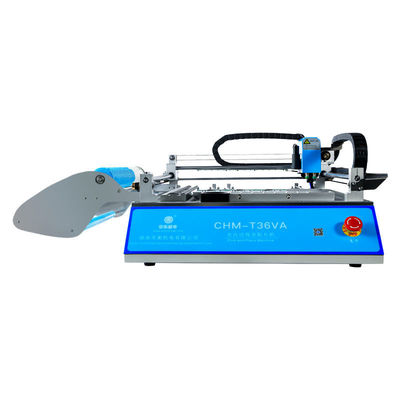

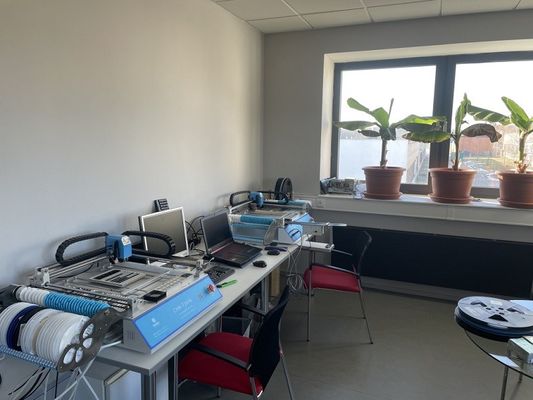

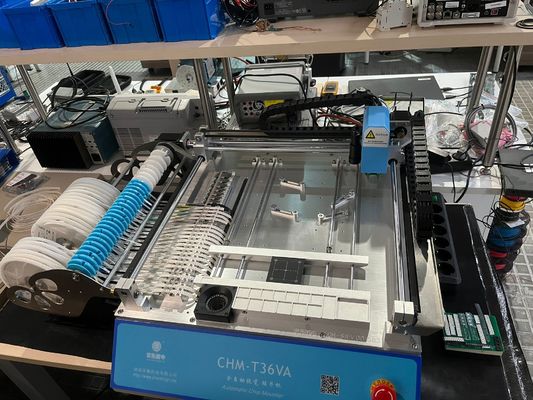

Detail Real pictures: (100% Real)
This CHMT36VA need to control by your external PC:
Kindly note:
The pick and place machine is complete set with all accessories, you only need to prepare an external PC to control the software.
Now enjoy with your pick and place machine!
Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machine, factory reliable direct supply.
We provide online Q/A and troubleshooting support and technical advice service.
Provide one to one after-sale service. Each machine 100% test well before send out.
