Stencil Printer: 3040 High Precision Printer Manual Type CHM-551: 4 Heads 50 Feeders With Auto Change Nozzle
T961: Conveyor Reflow Oven, 6 Temperature Zones SMT Line: High Precision Small SMT Line
Highlight:

3040 SMT Chip Mounter

,

CHM-550 SMT Chip Mounter

,

CHM-550 SMT Production Line

High Precision Small SMT Production Line 3040 Stencil Printer CHM-551P SMT Chip Mounter Reflow Oven T961
High Precision Small SMT Production Line
Complete solution featuring 3040 Stencil Printer, CHM-551P SMT Chip Mounter, and Reflow Oven T961. Ideal for small batch production, PCB assembly, and economical SMT solutions. Perfect for startup businesses, university education, and research applications.
  • High configuration with minimum component size 0201 supported
  • Mounting accuracy: (XY)±0.05mm; CPK≥1.0
Stencil Printer 3040 Technical Parameters
Type Manual
Gross Weight 23kg
Maximum Print Area 250×400mm
Packing Size 66cm(L) × 50cm(W) × 28cm(H)

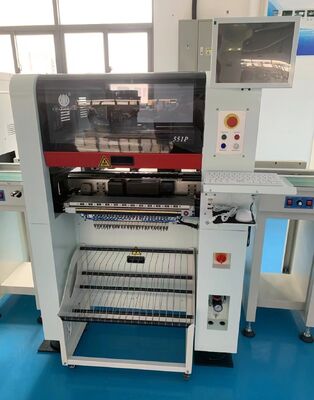

CHM-551P Pick and Place Machine
Dimensions 1020mm(L) × 1180mm(W) × 1450mm(H)
Weight 556kg
Power Supply AC220V (50Hz, single phase) 1.5kw (average power 350w)
Air Supply 0.5MPa ~0.7MPa
Vacuum Generation Built-in vacuum pump
Mounting Head Quantity 4 heads
Mounting Speed 14400CPH (optimal)
Mounting Accuracy (XY)±0.035mm; CPK≥1.0
Component Height 12mm
Component Type 0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.) 0201 to larger component 30×30mm size
PCB Thickness 0.6mm~3.5mm
PCB Size 350mm(L)×270mm(W) (Standard); 600mm(L)×350mm(W) (Optional)

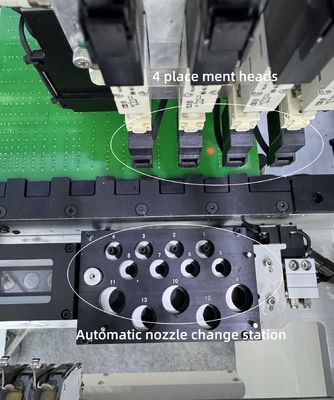

Nozzle Change Automatic nozzle change (13-hole nozzle library)
Control System Linux system, equipped with monitor, keyboard, and mouse
Drive System X&Y axis driven by servo motors; adopting flexible S-curve acceleration and deceleration
Transmission System Ball screw + linear guide
Feeding System 50 Yamaha 8mm standard pneumatic/electric feeder stacks (also suitable for IC tray and stick feeder)
Vision System Snapshot camera×4 (component size applicable: 14mm×14mm); IC camera×1 (component size applicable: 30mm×30mm); Mark camera×2
Parts List
Item Quantity Item Quantity
Pick and place machine 1 Tweezer 1
Nozzles 8 Inner Hexagon Spanner 1
Tool box 1 Lubricating oil 1
Warranty Card 1 Filter 4
User Manual 1 Quick connector 1
Test Report 1 Mouse Pad 1
Brush 1 Power Cable 1
T961 Reflow Oven Parameters
Model T-961
Heating Zone Quantity Upper 3 / Lower 3
Length of Heating Zone 730mm
Heating Type Intelligent level sirocco and rapid infrared heating
Cooling Zone Quantity 1
Maximum Width of PCB Board 230mm
Operation Direction Left → Right
Delivery Options Net transmission & chain transmission
Speed of Conveyor Belt 0-290mm/min
Power Supply 220V 50/60Hz
Peak Power 3.5KW
Heating Up Time Around 7 minutes
Temperature Control Range Room temperature - 300°C
Temperature Control Mode PID closed-loop control
Temperature Control Accuracy ±1°C
PCB Temperature Distribution Deviation ±2°C
Overall Dimensions 1000×466×445mm
Machine Weight 70KG
Product Images

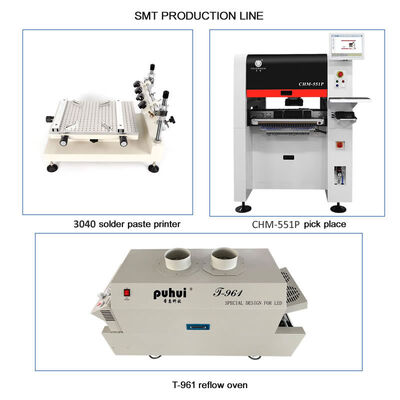

High Precision SMT Production Line Detail
Customer Installation Photos
Customer SMT production line installation Customer SMT machine operation
Manual Stencil Printer 3040
Manual stencil printer for double layer PCB
T961 Lead-Free Reflow Oven

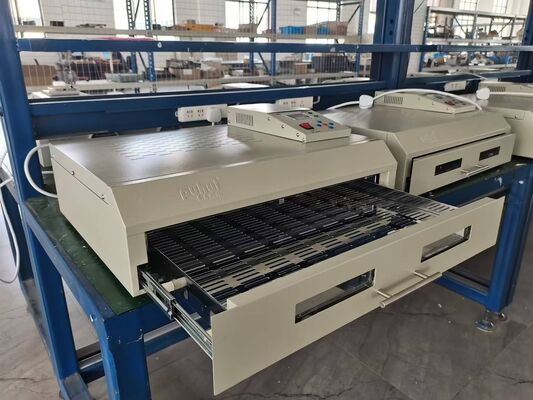

T961 reflow oven with 730x230mm heating size for double layer PCB
Best combination small SMT line - we highly recommend it! Purchase with confidence.
Charmhigh factory direct supply with quality assurance.
Important Notes
The CHM-551P SMT pick and place machine only requires connection to an external air source (prepared by customer), no other accessories needed.
Each machine passes quality control inspection before shipment.
We provide timely after-sales service and each machine is 100% tested before shipping.
Service & Warranty
  • Complete machine warranty: 1 year from purchase date with lifetime service
  • Factory direct supply of reliable spare parts
  • Online Q/A and troubleshooting support with technical advice
  • One-to-one after-sales service
  • Each machine 100% tested before shipment
Technical Support & Contact
Kimi Liu
Charmhigh Technology Limited
Mobile/WhatsApp: +8613510675756
Email: kimi@charmhigh-tech.com
YouTube Channel:
www.youtube.com/c/KimiLiuCharmhigh/videos
For more information and videos, please contact us by email. We respond promptly.
