CHM-551 SMD Production Line SMT Assembly Line High Precision 4 Heads PCB Making Robot

CHM-551 SMD Production Line SMT Assembly Line High Precision 4 Heads PCB Making Robot
CHM-551 SMD Production Line SMT Assembly Line High Precision 4 Heads PCB Making Robot CHM-551 SMD Production Line SMT Assembly Line High Precision 4 Heads PCB Making Robot CHM-551 SMD Production Line SMT Assembly Line High Precision 4 Heads PCB Making Robot CHM-551 SMD Production Line SMT Assembly Line High Precision 4 Heads PCB Making Robot

Large Image :  CHM-551 SMD Production Line SMT Assembly Line High Precision 4 Heads PCB Making Robot

Product Details:
Place of Origin: China
Brand Name: Charmhigh
Certification: CE
Model Number: Stencil Printer 3250/ CHM-551 / T961 Reflow Oven
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $10680 USD
Packaging Details: wooden box
Delivery Time: 1-3 working days
Payment Terms: T/T; Western Union
Supply Ability: 100 per month

CHM-551 SMD Production Line SMT Assembly Line High Precision 4 Heads PCB Making Robot

Description
Stencil Printer: 3250 Semi-auto Solder Paste Printer CHM-551: 4 Heads 50 Feeders (auto Change Nozzle, Auto Pcb Conveyor)
T961: Conveyor Reflow Oven, 6 Temperature Zones SMT Line: High Precisoin Smt Line, Support 0201
Component: 0201/0402/0603-5050/SOT/SOP/QFP/QFN/BGA, Etc. Mounting Precision: (XY)±0.06mm ; CPK≥1.0
PCB Size: 350mm(L)x270mm(W) Mounting Speed: 11500CPH(optimal) IPC9850:8850cph
High Light:

High Precision SMD Production Line

,

SMD Production Line PCB Making Robot

,

SMT Assembly Line PCB Making Robot

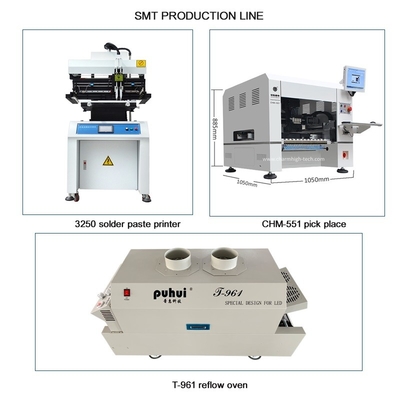

High Precision & Economical SMT Production Line:

3250 semi-auto stencil printer, CHM-551 SMT Chip Mounter, Reflow Oven T961

Small SMT Production Line , high configuration, CPK test passed, min component 0201

CHM-551 SMD Production Line SMT Assembly Line High Precision 4 Heads PCB Making Robot 0

1. Stencil Printer 3250 Technical Parameters

Model 3250
Dimension 850x670x1550(mm)
Table size 320x500(mm)
PCB size 250x400(mm)
Stencil size 550x680(mm)
Printing speed 0~8000(mm)/Min
PCB thickness 0~100(mm)
PCB slightly adjust range Front/ Side +10mm
Voltage 1PAC220V 50/60HZ
Printing table height 850±20(mm)
Repeat accuracy ±0.01mm
PCB positioning way Outside/Reference hole
Weight Approx. 250Kg

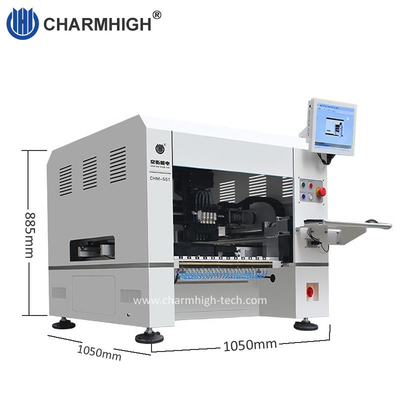

2. CHM-551 SMT Pick and place machine

CHM-551 Specifications
Dimensions 980mm(L)X 1050mm(W) X 880mm(H)
Weight 190kg
Power Supply AC220V (50Hz,single phase) 1.5kw
Air Supply 0.5MPa ~0.7MPa
Vacuum Generation vacuum pump
Mounting Head Quantity 4
Mounting Speed 11500CPH (optimal)
IPC9850: 8850cph
Mounting Accuracy (XY)±0.06mm; CPK≥1.0
Component Height 12mm
Component Type 0201/0402/0603~5050/SOT/SOP/QFP/QFN/BGA, etc.
(resistor/capacitor/diode/triode/LED/IC, etc.)
PCB Thickness 0.6mm~3.5mm
PCB Size 350mm(L)x270mm(W) (Standard);
600mm(L)x350mm(W) (Optional)
Nozzle Change Automatic nozzle change (13-hole nozzle library)
Control System Built-in industrial computer (Windows 7)
equipped with monitor, keyboard, and mouse
Drive System

X&Y axis driven by servo motors;

adopting flexible S-curve acceleration and deceleration

Transmission System Ball screw + linear guide
Feeding System 50 Yamaha 8mm standard pneumatic/electric feeder stacks
(also suitable for IC tray and stick feeder)
Vision System Snapshot camera×4 (component size applicable: 14mm×14mm);
IC camera×1 (component size applicable: 25mm×25mm);
Mark camera×2

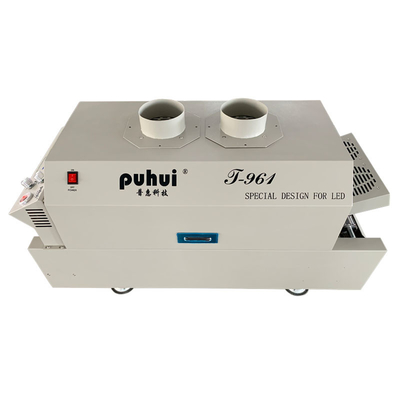

3. T961 parameters:

Model T-961
The heating zone quantity upper3/down3
The length of the heating zone 730mm
The heating type intelligent level sirocco and rapid infrared heating
The cooling zone quantity 1
Maximum width of PCB board 230mm
The operation direction left→right
Delivery options Net transmission&chain transmission
The speed of conveyer belt 0-290mm/min
The power supply 220V 50/60Hz
Peak power 3.5KW
Heating up time Around 7mins
Temperature control range Room temperature-300
Temperature control mode PID closed-loop control
Temperature control accuracy ±1
PCB temperature distribution deviation ±2
Overall dimensions 1000×466×445mm
Machine weight 70KG

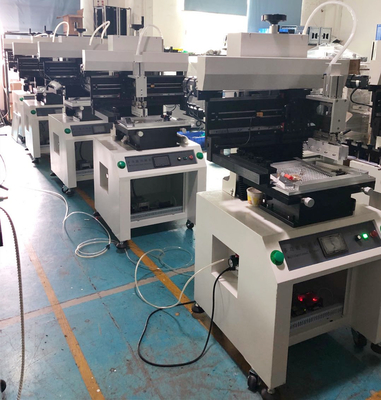

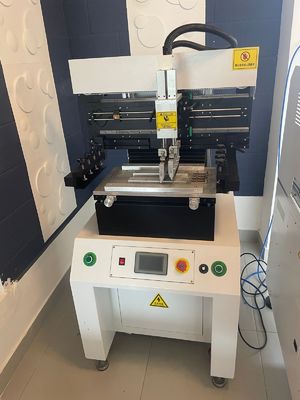

1. Semi-auto solder paste printer 3250

CHM-551 SMD Production Line SMT Assembly Line High Precision 4 Heads PCB Making Robot 1

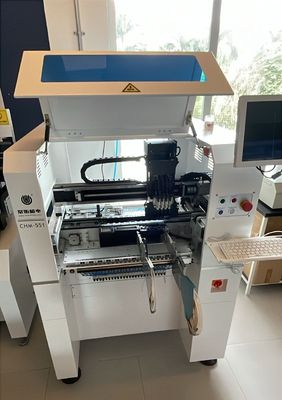

2. CHM-551 four heads full automatic SMT pick and place machine, highlight:

1. Support CPK test, CPK≥1.0
2. Automatic nozzle change (13 sets nozzle library)
3. Thermal Compensation
4. Automatic PCB conveying
5. Optimal speed:11500CPH, IPC9850:8850CPH

6. Min 0201 supported

7. Ball screw + linear guide

8. Servo motors

CHM-551 SMD Production Line SMT Assembly Line High Precision 4 Heads PCB Making Robot 2

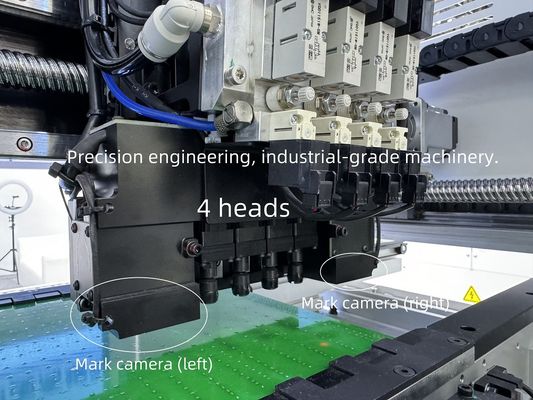

Very precice for fine pitch IC:

CHM-551 SMD Production Line SMT Assembly Line High Precision 4 Heads PCB Making Robot 3

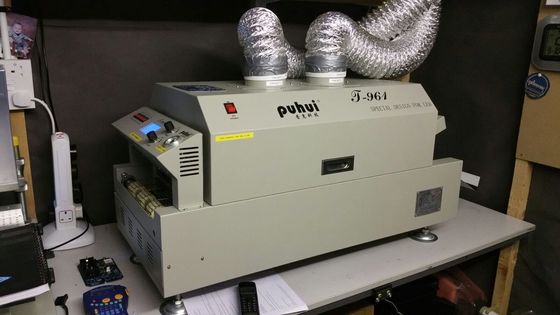

3. T961 lead-free reflow oven, bigger heating size 730x230mm, for double layer PCB:

CHM-551 SMD Production Line SMT Assembly Line High Precision 4 Heads PCB Making Robot 4

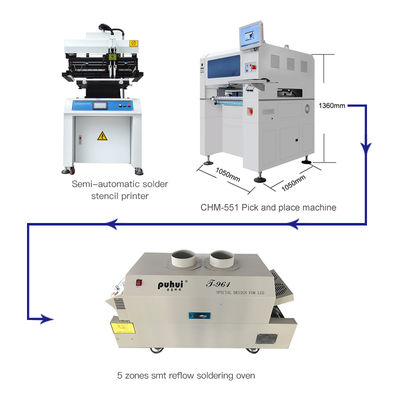

Best combination SMT line, we recommend it! Please purcahse with confidence.

Charmhigh factory supply, with quality assurance.

Please send us E-mail or give us a call if you have more questions.

CHM-551 SMD Production Line SMT Assembly Line High Precision 4 Heads PCB Making Robot 5



Kindly note:

The CHM-551 smt pick and place machine only need to connect external air source which is prepared by yourself, no need other stuff.

The machine has passed QC passed before ship out.

We provide timely after-sales service, each machine 100% tested well before ship out. Please purchase it with confidence.

Enjoy with your pick and place machine!



Service & Warranty:

The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.

We always provide spare parts of machine, factory reliable direct supply.

We provide online Q/A and troubleshooting support and technical advice service.

Provide one to one after-sale service. Each machine 100% tested well before ship out.
