Product Details:
Place of Origin: China
Brand Name: Charmhigh
Certification: CE
Model Number: Stencil Printer 3040 / CHMT36VB+Vibration feeder / 420 Reflow Oven
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $4600~$5000 including shipping DHL
Packaging Details: Wooden box
Delivery Time: 1-3 days
Payment Terms: T/T; Western Union
Supply Ability: 200 per month

Small SMT Production Line With Stencil Printer Pick And Place Machine Reflow Oven 420

Description
CHMT36VA: External PC Control With Windows System Vision Camera: Yes, Up& Down Vision Cameras
Feeder: 58pcs Feeder+2 Heads PCB Size: 10*10mm ~ 355mm(L)×355mm(W)
Stencil Printer Table Size: 200*450mm (high Precision Type) 420 Reflow Oven: 1500w With Smoke Fan
Soldering Sizel: 300*320MM Suitable: For Small Batch Production / Prototyping
Stencil Printer: 3040 Manual Type Reflow Oven: 300*300mm, Drawer Type
High Light:

SMT Line Stencil Printer

,

SMT Production Line Reflow Oven

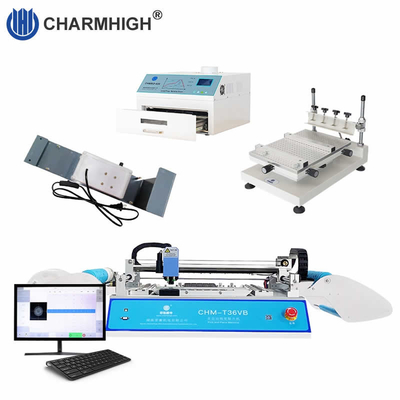

Hot genius economical small SMT production line, total length 2.25m
1. 3040 high precision stencil printer
2. CHMT36VB 58 feeders pick and place machine
3.CHMRO-420 hot air & infrared reflow soldering oven
Small SMT Production Line With Stencil Printer Pick And Place Machine Reflow Oven 420 0
Description:
This small pcb assembly line is made by Charmhigh, room saved with reasonable price. Suitable for prototyping and small batch production, from 0402 to 5050, LED/SOT/SOP/QFP/QFN, etc. Strong function with very low price. We recommend to everyone.

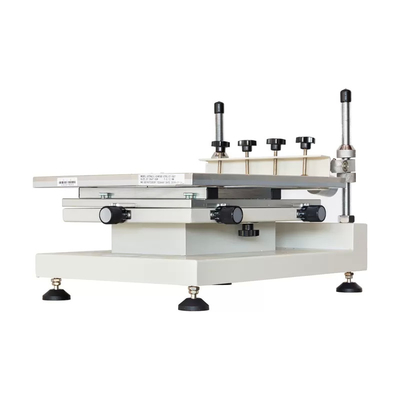

1.Stencil Printer 3040:

Work table size 300*400mm
Print size 250*400mm
Max net frame size 370*470mm
Printer way manual
Thickness of the substrates 0-80mm
The workbench adjust volume 10mm, Horizontal Angle adjustment
Printing platform height 220mm
repeated accuracy +-0.01mm
locate mode Benchmark or hole shape
Dimension 540*370*350 mm
Packing size 630*450*480mm
Weight NW.25Kg GW.35Kg


3040 working video Youtube link: https://www.youtube.com/watch?v=K4we2-hehxA&t=234s
Small SMT Production Line With Stencil Printer Pick And Place Machine Reflow Oven 420 1

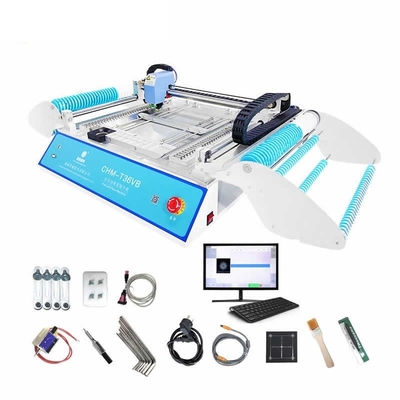

CHM-T36VB Parts List

Item Quantity Item Quantity
Pick and place machine 1 Tweezer 1
Nozzles 8 Inner Hexagon Spanner 1
Tool box 1 Lubricating oil 1
Warranty Card 1 Filter 4
User Manual 1 Quick connector 1
Test Report 1 Mouse Pad 1
Brush 1 Power Cable 1


Small SMT Production Line With Stencil Printer Pick And Place Machine Reflow Oven 420 2

2. CHM-T36VB SMT pick and place robot
Dimensions 1310mm(L)x710mm(W)x340mm(H)
Weight 50kg
Power Supply AC220V (50Hz, single phase) /AC110V (60Hz, single phase);
300W
Air Supply No external air supply required
Vacuum Generation Built-in vacuum pump
Mounting Head Quantity 2 heads
Mounting Speed 5000cph (optimal without vision detection);
3000cph (optimal with vision detection)
Control Accuracy 0.025mm
Component Type 0402/0603~5050/SOT/SOP/QFP/QFN/BGA, etc.
(resistor/capacitor/diode/triode/LED/IC, etc.)
PCB Thickness 0.6mm~3.5mm
PCB Size 10mm(L)×10mm(W)~345mm(L)×360mm(W)
PCB Conveying Manual operation
Nozzle Change Manual operation
Control System External computer required (Windows)
Drive System X&Y-axis driven by stepping motors in the way of closed-loop control realized by encoder; Z-axis capable of reset detection; all motors adopting flexible S-curve acceleration and deceleration; tape puller automatic reset supported
Transmission System Synchronous belt + polished rod + Linear guides
Feeding System

58 tape feeding stacks (8mm:44pcs, 12mm:8pcs, 16mm:4pcs, 24mm:2pcs. Customization supported).
14pcs front bulk IC stacks, custom IC trays and stick feeder supported

Vision System Up-looking camera for component automatic calibration (component size applicable: 22mm×22mm); down-looking camera for PCB
calibration via Mark Point and component positioning


Right side added 58 feeder stacks, install more tapes, very convenient!

Small SMT Production Line With Stencil Printer Pick And Place Machine Reflow Oven 420 3
With vibration feeder, mounting tube material.

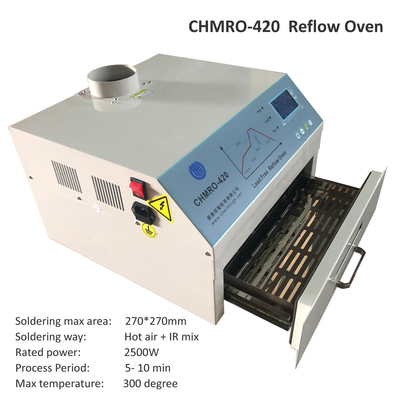

3. CHMRO-420 drawer type mini reflow soldering oven:

Dimensions 420mm×405mm×265mm
Net Weight 20kg
Rated Power 2500W (peak power)
Rated Voltage AC220V 50Hz/60Hz
Drawer Size 300mm×300mm
Soldering Type Lead Soldering / Lead-free Soldering
Maximum Soldering Temperature 300°C
Heating Mode Infrared ray & hot air
Temperature Control Accuracy ±1°C (at constant temperature)
Soldering Cycle 5 ~ 10 minutes
Saved Reflow Curve Quantity 8


Small SMT Production Line With Stencil Printer Pick And Place Machine Reflow Oven 420 4

Charmhigh, top Chinese brand. Plenty stock, welcome inquiry.
Small SMT Production Line With Stencil Printer Pick And Place Machine Reflow Oven 420 5


Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machine, factory reliable direct supply.
We provide online Q/A and troubleshooting support and technical advice service.
Provide one to one after-sale service. Each machine 100% tested well before ship out.
