Product Details:
|
| Stencil Printer: | High Precision Printer Manual Type | CHM-550: | 4 Heads 50 Feeders With Auto Change Nozzle |
|---|---|---|---|
| T962C: | Drawer Type Large Size 400x600mm | SMT Line: | High Precision Small SMT Line |
| Highlight: | 4 Heads PCB Assembly Line,Desktop PCB Assembly Line,High Precision PCB Assembly Line |
||

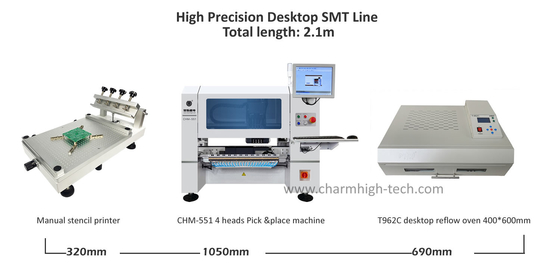

High Precision Small SMT Production Line:
3040 Stencil Printer, CHM-551 Desktop SMT Chip Mounter, Reflow Oven T962C
For small batch production, PCB assembly, economic SMT solutions
Good for start-up business, university education, researching...
High configuration, min component 0201 supported, (XY)±0.06mm; CPK≥1.0
1. Stencil Printer 3040 Technical Parameters
| Type: | Manual |
| G.W: | 23kg |
| Maximum print Area: | 250*400mm |
| Packing size: | L 66cm*W 50cm*H 28cm |
2. CHM-551 Pick and place machine
| CHM-551 Specifications | |
| Dimensions | 1050mm(L) x1050mm(W) x 880mm(H) |
| Weight | 210kg |
| Power Supply | AC220V (50Hz,single phase) 1.5kw |
| Air Supply | 0.5MPa ~0.7MPa |
| Vacuum Generation | vacuum pump |
| Mounting Head Quantity | 4 heads |
| Mounting Speed | 11500CPH (optimal); IPC9850: 8850cph |
| Mounting Accuracy | (XY)±0.06mm; CPK≥1.0 |
| Component Height | 12mm |
| Component Type | 0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.) |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 350mm(L)x270mm(W) (Standard); 600mm(L)x350mm(W) (Optional) |
| Nozzle Change | Automatic nozzle change (13-hole nozzle library) |
| Control System | Built-in industrial computer (Windows 7) equipped with monitor, keyboard, and mouse |
| Drive System |
X&Y axis driven by servo motors; adopting flexible S-curve acceleration and deceleration |
| Transmission System | Ball screw + linear guide |
| Feeding System | 50 Yamaha 8mm standard pneumatic/electric feeder stacks (also suitable for IC tray and stick feeder) |
| Vision System | Snapshot camerax4 (component size applicable: 14mm×14mm); IC camerax1 (component size applicable: 25mm×25mm); Mark camerax2 |
Parts List
| Item | Quantity | Item | Quantity |
| Pick and place machine | 1 | Tweezer | 1 |
| Nozzles | 8 | Inner Hexagon Spanner | 1 |
| Tool box | 1 | Lubricating oil | 1 |
| Warranty Card | 1 | Filter | 4 |
| User Manual | 1 | Quick connector | 1 |
| Test Report | 1 | Mouse Pad | 1 |
| Brush | 1 | Power Cable | 1 |
3. T96C parameters:
Model: T962C
Effective Soldering max area: 400 x 600mm
Rated power: 2900W
Temperature Range: 0degC-280degC
Process cycle: 1~8 min
Voltage: 110V or 220V, two kinds
Frequency: 50Hz~60Hz
Product size: 684x504x225mm
Net weight: 25kg
Packing weight: 30kg
Charmhigh 4 heads SMT pick and place machine CHM-551, good for 0201, BGA, 144pins IC:
This 4 heads CHM-551 designed for precision and ease of use in electronics manufacturing, while its speed is not very high, actual speed 8850 CPH. It excels in accuracy, capable of handling 0201 components with remarkable precision and has passed rigorous CPK testing.
Its compact design fits perfectly into prototyping and small to medium production setups.
Which is one of the most advanced small mounter on the market.
If precision is your top priority, the Charmhigh CHM-551 is the ideal solution.
Manual type high precision stencil printer:
T962C drawer type reflow oven, with 400x600mm large heating size:
Best combination small SMT line, we recommend it! Please purcahse with confidence.
Charmhigh factory supply, with quality assurance.
Kindly note:
The CHM-551 smt pick and place machine only need to connect external air source which is prepared by yourself, no need other stuff.
The machine has passed QC passed before ship out.
We provide timely after-sales service, each machine 100% tested well before ship out. Please purchase it with confidence.
Enjoy with your pick and place machine!
Service & Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machine, factory reliable direct supply.
We provide online Q/A and troubleshooting support and technical advice service.
Provide one to one after-sale service. Each machine 100% tested well before ship out.
