Semi-auto SMT Assembly Line with 6-Head TC06 Pick and Place

Semi-auto SMT Assembly Line with 6-Head TC06 Pick and Place
Semi-auto SMT Assembly Line with 6-Head TC06 Pick and Place Semi-auto SMT Assembly Line with 6-Head TC06 Pick and Place Semi-auto SMT Assembly Line with 6-Head TC06 Pick and Place Semi-auto SMT Assembly Line with 6-Head TC06 Pick and Place

Large Image :  Semi-auto SMT Assembly Line with 6-Head TC06 Pick and Place

Product Details:
Place of Origin: China
Brand Name: Charmhigh
Certification: CE
Model Number: TC06 medium SMT production line
Document: Charmhigh TC06 - Catalog.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $20400~$25000
Packaging Details: export plywood box
Delivery Time: 5-7 working days
Payment Terms: T/T
Supply Ability: 50 per month
Contact Now

Semi-auto SMT Assembly Line with 6-Head TC06 Pick and Place

Description
Solder Paste Printer: Semi-auto Stencil Printer 3250 Pick N Place Mahcine: Charmhigh TC06 (6 Heads)
Reflow Oven: 6 Zones, Up6+down6 Other Machines: SMT Conveyor 60cm
Highlight:

semi-auto SMT assembly line

,

6 heads PCBA manufacturing

,

medium SMT production line

High-end Semi-auto Medium SMT Assembly Line, 6 heads TC06 PCBA Manufacturing
Product Specifications
Attribute Value
Solder paste printer Semi-auto stencil printer 3250
Pick n place machine Charmhigh TC06 (6 heads)
Reflow oven 6 zones, up6+down6
Other machines SMT conveyor 60cm
Product Overview
High end 6-head pick and place machine with high accuracy for medium SMT production. CPK passed CPK >1.0, supports 01005 components, speed 27800cph, PCB size 350(L)x300mm(W).
Efficient and reliable SMT solution featuring semi-auto stencil printing, precision component placement, and 6-zone reflow soldering. Ideal for streamlined PCB production.

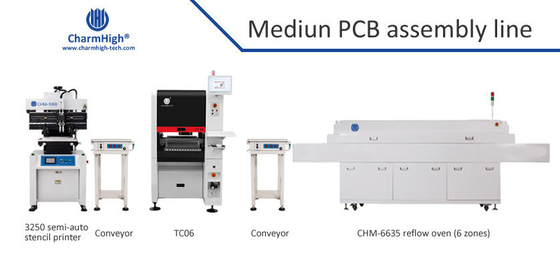

Semi-auto Medium SMT Production Line Package
  • 3250 Semi-auto solder paste printer
  • SMT conveyor
  • TC06 Charmhigh 6 heads pick and place machine
  • SMT conveyor
  • CHM-6635 reflow oven (up6 + down6 temp zones)
TC06 Pick and Place Machine Demonstration

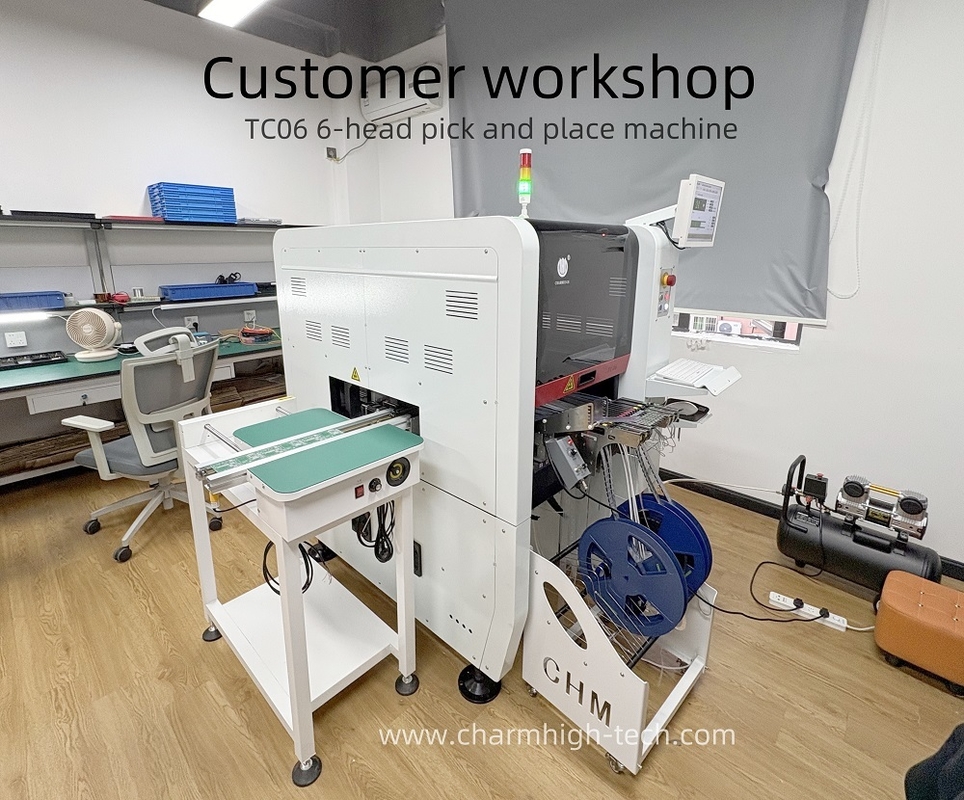

Compact SMT Line for Quality Assembly
Semi-auto SMT Assembly Line with 6-Head TC06 Pick and Place 0

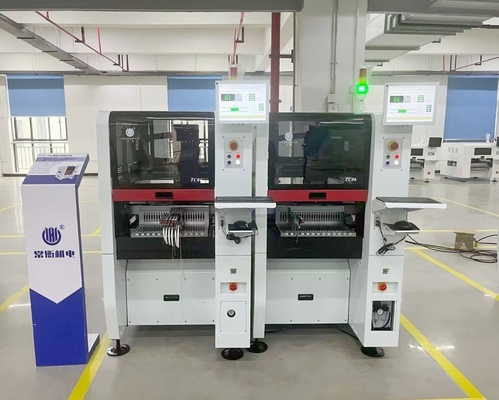

Charmhigh TC06 SMT Pick and Place Machine
Semi-auto SMT Assembly Line with 6-Head TC06 Pick and Place 1 Semi-auto SMT Assembly Line with 6-Head TC06 Pick and Place 2
Service & Warranty
The complete machine has a warranty period of 1 year from the time of purchase with lifetime service support.
  • Factory direct supply with guaranteed spare parts availability
  • Online Q/A and troubleshooting support
  • Technical advice service
  • One-to-one after-sale service
  • Each machine 100% tested before shipment
Technical Support
Kimi Liu: Mob/WhatsApp: +86 135 106 75756
E-mail: kimi@charmhigh-tech.com
Follow us on YouTube: www.youtube.com/kimiLiuCharmhigh
For more information, please contact us by email. We will respond promptly.
Semi-auto SMT Assembly Line with 6-Head TC06 Pick and Place 3
