Room-Saved High Precision 6-Head SMT Production Line for Efficient PCB Assembly

Room-Saved High Precision 6-Head SMT Production Line for Efficient PCB Assembly
Room-Saved High Precision 6-Head SMT Production Line for Efficient PCB Assembly Room-Saved High Precision 6-Head SMT Production Line for Efficient PCB Assembly Room-Saved High Precision 6-Head SMT Production Line for Efficient PCB Assembly Room-Saved High Precision 6-Head SMT Production Line for Efficient PCB Assembly

Large Image :  Room-Saved High Precision 6-Head SMT Production Line for Efficient PCB Assembly

Product Details:
Place of Origin: China
Brand Name: Charmhigh
Certification: CE
Model Number: TC06 medium SMT production line
Document: Charmhigh TC06 - Catalog.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $20400~$25000
Packaging Details: export plywood box
Delivery Time: 5-7 working days
Payment Terms: T/T
Supply Ability: 50 per month
Contact Now

Room-Saved High Precision 6-Head SMT Production Line for Efficient PCB Assembly

Description
Solder Paste Printer: Semi-auto Stencil Printer 3250 Pick N Place Mahcine: Charmhigh TC06 (6 Heads)
Reflow Oven: 6 Zones, Up6+down6 Other Machines: SMT Conveyor 60cm
Highlight:

6-Head SMT Production Line

,

High Precision PCB Assembly Line

,

Room-Saved SMT Assembly Line

Room-Saving High Precision Medium SMT Production Line
High-end semi-automatic medium SMT assembly line featuring the 6-head TC06 pick and place machine for efficient PCBA manufacturing.
Product Specifications
Attribute Value
Solder paste printer Semi-auto stencil printer 3250
PCB loader Full automatic Mini PCB loader
Pick and place machine Charmhigh TC06 (6 heads)
Reflow oven CHM-PC6635 (6 zones, up6+down6, with rail, with PC)
Other machines SMT conveyor 50 or 60cm
Product Overview
High-end 6-head pick and place machine with exceptional accuracy for medium SMT production. CPK certified with CPK >1.0, supports 01005 components, placement speed of 27,800 components per hour, and accommodates PCB sizes up to 350mm(L) x 300mm(W).
This efficient and reliable SMT solution combines semi-automatic stencil printing, precision component placement, and 6-zone reflow soldering for streamlined PCB production.
Semi-Automatic Medium SMT Production Line Package
  • 3250 Semi-automatic solder paste printer
  • Full-automatic mini PCB loader
  • SMT conveyor 50cm
  • TC06 Charmhigh 6-head pick and place machine
  • SMT conveyor 50cm
  • CHM-PC6635 reflow oven (up6 + down6 temperature zones, automatic rail, PC control)

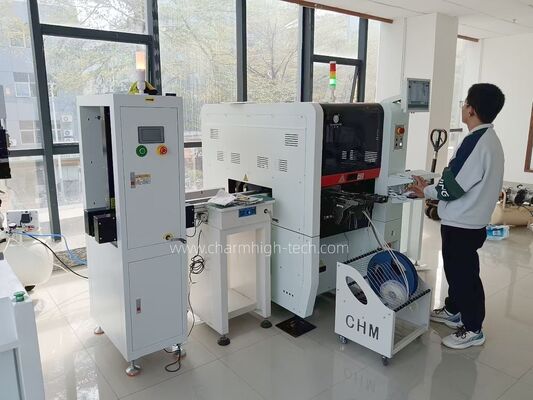

Compact SMT Line for Quality Assembly
Room-Saved High Precision 6-Head SMT Production Line for Efficient PCB Assembly 0

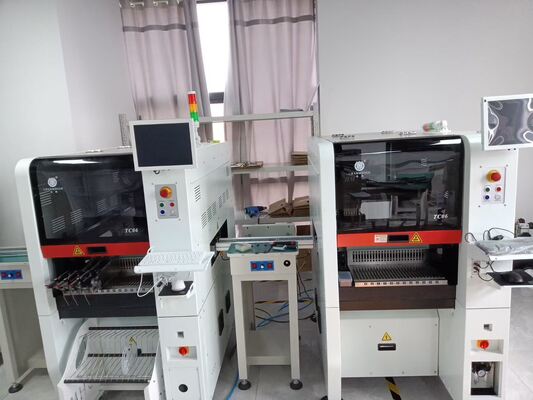

Charmhigh TC06 SMT Pick and Place Machine
Room-Saved High Precision 6-Head SMT Production Line for Efficient PCB Assembly 1 Room-Saved High Precision 6-Head SMT Production Line for Efficient PCB Assembly 2 Room-Saved High Precision 6-Head SMT Production Line for Efficient PCB Assembly 3
Split-Type Reflow Oven CHM-PC6635
Split-type design allows easier moving and flexible installation, saving valuable workspace. Features automatic rail system and PC control.
Room-Saved High Precision 6-Head SMT Production Line for Efficient PCB Assembly 4
Service & Warranty
Complete machine includes 1-year warranty from purchase date with lifetime service support.
  • Factory direct supply with guaranteed spare parts availability
  • Online Q/A and troubleshooting support
  • Technical advice service
  • One-to-one after-sale service
  • Each machine 100% tested before shipment
