High Precision 4-head CHM-551P SMT Production Line with 4-zone Reflow Oven for PCB Assembly

High Precision 4-head CHM-551P SMT Production Line with 4-zone Reflow Oven for PCB Assembly
High Precision 4-head CHM-551P SMT Production Line with 4-zone Reflow Oven for PCB Assembly
High Precision 4-head CHM-551P SMT Production Line with 4-zone Reflow Oven for PCB Assembly High Precision 4-head CHM-551P SMT Production Line with 4-zone Reflow Oven for PCB Assembly High Precision 4-head CHM-551P SMT Production Line with 4-zone Reflow Oven for PCB Assembly High Precision 4-head CHM-551P SMT Production Line with 4-zone Reflow Oven for PCB Assembly High Precision 4-head CHM-551P SMT Production Line with 4-zone Reflow Oven for PCB Assembly High Precision 4-head CHM-551P SMT Production Line with 4-zone Reflow Oven for PCB Assembly

Large Image :  High Precision 4-head CHM-551P SMT Production Line with 4-zone Reflow Oven for PCB Assembly

Product Details:
Place of Origin: China
Brand Name: Charmhigh
Certification: CE
Model Number: chm-551p small & medium SMT production line
Document: Charmhigh CHM-551P - Catalo...og.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $15,200~$18,000
Packaging Details: export plywood box
Delivery Time: 5-7 working days
Payment Terms: T/T
Supply Ability: 50 per month
Contact Now

High Precision 4-head CHM-551P SMT Production Line with 4-zone Reflow Oven for PCB Assembly

Description
Solder Paste Printer: Semi-auto Stencil Printer CHM-3250 Pick N Place Mahcine: Charmhigh Chm-551p (4 Heads)
Reflow Oven: CHM-F830-PC (4 Zones, Up4+down4, With Rail, With PC) Other Machines: SMT Conveyor 50/ 60cm
Highlight:

SMT reflow oven for PCB assembly

,

High precision CHM-551P reflow oven

,

F830 SMT production line oven

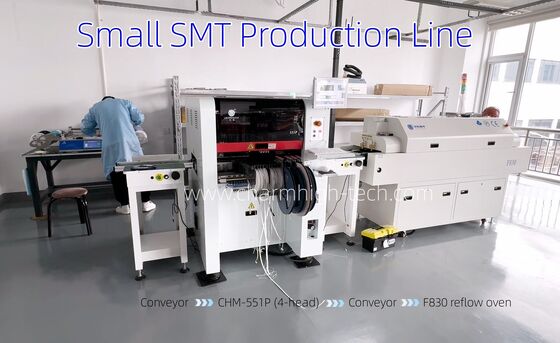

High-end 4-head CHM-551P Compact SMT Production Line with F830 Reflow Oven
Complete PCB assembly solution featuring high precision 4-head pick and place machine and advanced reflow oven for professional PCBA manufacturing.
Complete Package Includes
  • 3250 Semi-automatic solder paste printer
  • SMT conveyor system
  • CHM-551P Charmhigh 4-head pick and place machine
  • SMT conveyor 50 or 60cm
  • CHM-F830-PC reflow oven (4 upper + 4 lower temperature zones)

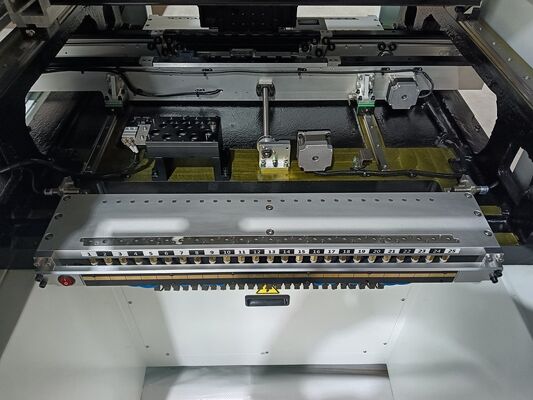

CHM-551P Pick and Place Machine Specifications
Dimensions 1020mm(L) × 1180mm(W) × 1450mm(H)
Weight 556kg
Power Supply AC220V (50Hz, single phase) 1.5kW (average power 350W)
Air Supply 0.5MPa ~ 0.7MPa
Mounting Head Quantity 4 heads
Mounting Speed 14,400 CPH (optimal)
Mounting Accuracy (XY)±0.035mm; CPK≥1.0
Component Height 12mm
Component Types 0201/0402/0603 to 5050/SOT/SOP/QFP/QFN/BGA, etc.
Resistor/capacitor/diode/triode/LED/IC, etc.
0201 to larger components up to 30×30mm size
PCB Thickness 0.6mm ~ 3.5mm
PCB Size 350mm(L) × 270mm(W) (Standard)
600mm(L) × 350mm(W) (Optional)
Nozzle Change Automatic nozzle change (13-hole nozzle library)
Control System Linux system with monitor, keyboard, and mouse
Drive System X&Y axis servo motors with flexible S-curve acceleration/deceleration
Transmission System Ball screw + linear guide
Feeding System 50 Yamaha 8mm standard pneumatic/electric feeder stacks
Suitable for IC tray and stick feeder
Vision System 4 snapshot cameras (components up to 14×14mm)
1 IC camera (components up to 30×30mm)
2 mark cameras
CHM-F830-PC Reflow Oven Specifications
Model CHM-F830-PC (PC control, 4 upper + 4 lower zones, 300mm width)
Heating Zones 4 upper + 4 lower
Heating Length 1400mm
Cooling Zones 2
Max PCB Width Mesh width 300mm, Rail adjustable 200mm
Conveyor Height Mesh 880±20mm
Transport System Mesh conveyor + Rail conveyor
Conveyor Speed 0-2000mm/min
Power Supply 5 wires 380V 50/60Hz
Startup Power 10kW
Operating Power Approx. 2.5kW
Control System Industrial PC + monitor
Warm-up Time 15-20 minutes
Temperature Range Room Temperature - 350℃
Temperature Control Industrial PC + Temperature module control, SSR Driver
Temperature Precision ±1℃
Temperature Distribution Error ±3℃
Net Weight Approx. 230kg
Dimensions 2500mm(L) × 650mm(W) × 1400mm(H)
High Precision 4-head CHM-551P SMT Production Line with 4-zone Reflow Oven for PCB Assembly 0

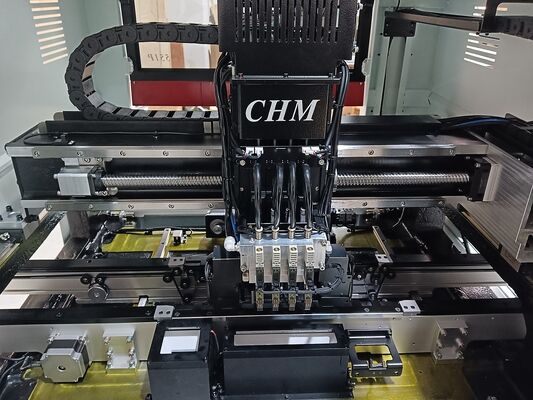

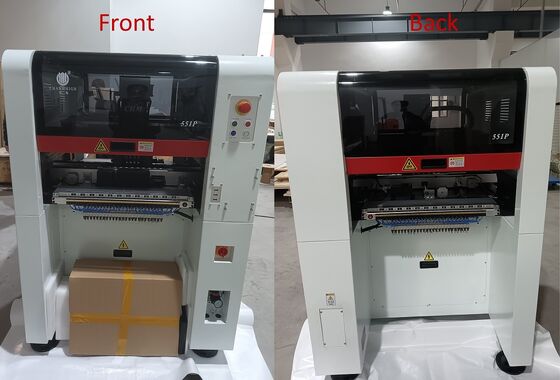

High Precision 4-head CHM-551P with Cast-Iron Frame
Supports 0201 components with robust cast-iron construction for maximum stability and precision.
High Precision 4-head CHM-551P SMT Production Line with 4-zone Reflow Oven for PCB Assembly 1

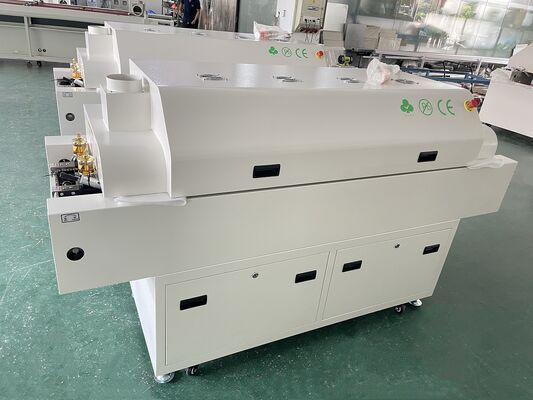

CHM-F830-PC Compact Reflow Oven
Features automatic rail adjustment and PC control for precise temperature profiling.
High Precision 4-head CHM-551P SMT Production Line with 4-zone Reflow Oven for PCB Assembly 2
Warranty & Support
Complete machine warranty: 1 year from purchase date with lifetime service support.
  • Factory direct spare parts supply
  • Online technical support and troubleshooting
  • One-to-one after-sales service
  • Each machine 100% tested before shipment
Technical Support Contact
Kimi Liu
Mobile/ WhatsApp: +8613510675756
Email: kimi@charmhigh-tech.com
YouTube: @KimiLiuCharmhigh
For additional information and video demonstrations, please contact us by email. We respond promptly to all inquiries.
