TC06 Dimension: 890x1450x1500mm(LxWxH) Net Weight: 960kg
Power: AC220V (50 Hz, Single Phase) Optimal Speed: 27800 CPH
Feeder: Support 50pcs NXT Electric Feeder PCB Size: 350mm(L) * 300mm(W)
Min And Max Component: 01005 To 36*36mm IC Component Max Height: 12mm

Dual TC06 Pick and Place Machines Fully-automatic SMT Production Line
Product Overview

High-end dual TC06 pick and place machines SMT assembly line for efficient PCBA manufacturing. Upgrade your electronics manufacturing with our dual TC06 fully-automatic SMT production line, featuring two Charmhigh TC06 6-head pick and place machines working in tandem for maximum throughput and efficiency.

Each TC06 delivers an optimal mounting speed of 27,800 CPH with ±0.03mm placement accuracy and CPK≥1.0 process capability, ensuring stable, repeatable quality for high-mix PCB assembly. (27800CPH+27800CPH=55600CPH).

This complete SMT line includes dual 6-head mounting systems with automatic nozzle changers (19-hole nozzle library), 50 NXT electric feeder slots per machine, and advanced vision systems with 6 fly cameras, 1 IC camera, and 2 Mark cameras per unit.

The narrow 890mm width design fits standard elevators and compact factory floors, enabling flexible dual-machine deployment without facility modifications. The integrated cast iron frame structure, smart thermal compensation, and auto-calibration ensure long-term precision stability, even in 24/7 production environments.

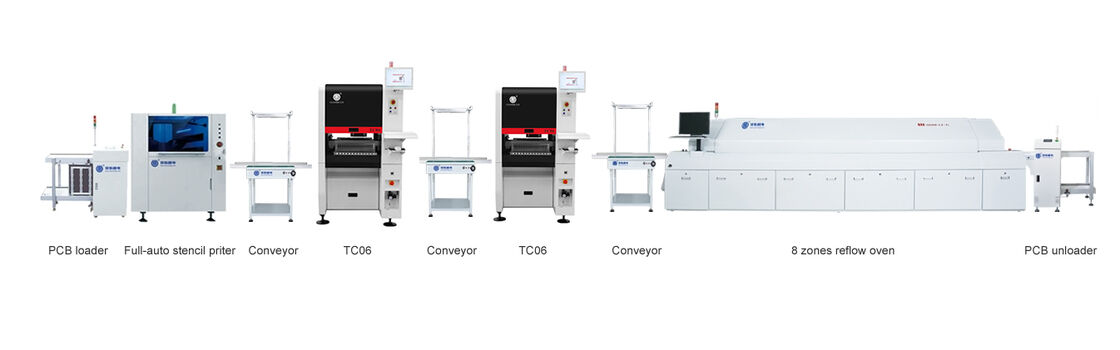

Production Line Package
  • PCB loader 250LD
  • Fully-automatic solder paste printer E6
  • Conveyor 50cm
  • TC06 6-head pick and place machine (6-head)
  • Conveyor 50cm
  • TC06 6-head pick and place machine (6-head)
  • Conveyor 50cm
  • 8-zone reflow oven CHM-PC850
  • PCB unloader 250ULD
TC06 Technical Specifications

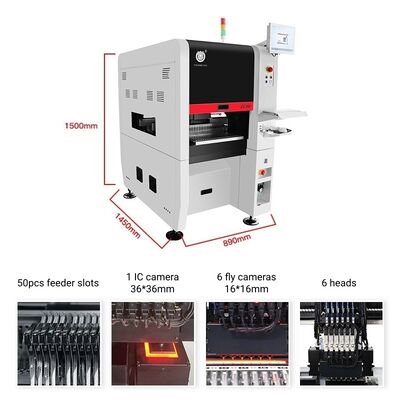

Dimensions 890mm(L) x 1450mm(W) x 1500mm(H)

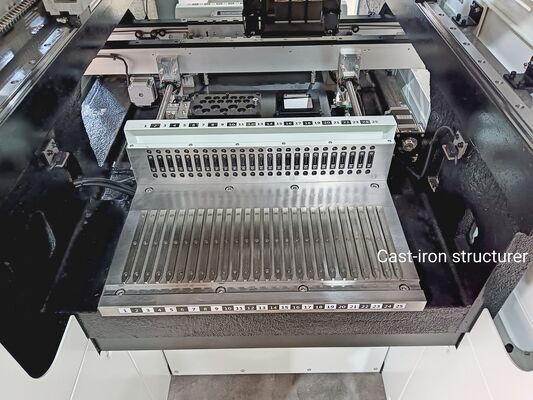

Weight 960kg (Cast-iron structure)
Power Supply AC220V (50Hz, single phase), 3kW
Air Supply 0.5MPa ~0.7MPa
Vacuum Generation Built-in vacuum pump
Mounting Head Quantity 6
Mounting Speed 27,800 CPH (optimal)
Mounting Accuracy (xy)+30μm, CPK≥1.0
Component Height ≤12mm
Component Range Resistor capacitor exclusion, cylindrical diode, aluminum capacitor, SOT, SOP, QFP, QFN, BGA, etc.
Component Size 01005 to 36*36mm, and larger components mounting
PCB Thickness 0.6mm~3.5mm
PCB Size 350mm(L) x 300mm(W)
PCB Conveying 3-section-rail automatic conveying, PCB support device
Nozzle Change Automatic nozzle change (19-hole nozzle library)
Control System Built-in industrial computer (Windows system) equipped with monitor, keyboard, and mouse
Drive System X&Y axis driven by Panasonic servo motors
Transmission System Grounding screws + Linear guides
Feeding System 50 NXT 8mm standard feeder stacks (also suitable for IC tray and stick feeder)
Vision System Fly camera x 6 (component size applicable: 16mmx16mm); IC camera x 1 (component size applicable: 36mmx36mm); Mark camera x 2
Key Specifications
  • Mounting Speed: 27,800 CPH (optimal per machine)
  • Component Range: 01005 to 36×36mm (BGA, QFN, QFP, SOP, LED, resistors, capacitors)
  • PCB Size: Up to 350mm × 300mm
  • PCB Thickness: 0.6mm - 3.5mm
  • Power: AC 220V, 3kW per machine
  • Drive System: Panasonic servo motors with THK ground screws and linear guides
Product Images

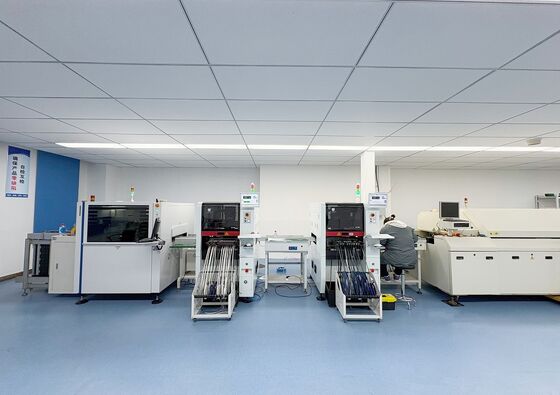

Dual TC06 Pick and Place Machines Fully-automatic SMT Production Line 0 Dual TC06 Pick and Place Machines Fully-automatic SMT Production Line 1 Dual TC06 Pick and Place Machines Fully-automatic SMT Production Line 2 Dual TC06 Pick and Place Machines Fully-automatic SMT Production Line 3
