High Volume Large In-line SMT Assembly Line SMT Solutions For PCBA Manufacturing

High Volume Large In-line SMT Assembly Line SMT Solutions For PCBA Manufacturing
High Volume Large In-line SMT Assembly Line SMT Solutions For PCBA Manufacturing High Volume Large In-line SMT Assembly Line SMT Solutions For PCBA Manufacturing High Volume Large In-line SMT Assembly Line SMT Solutions For PCBA Manufacturing High Volume Large In-line SMT Assembly Line SMT Solutions For PCBA Manufacturing

Large Image :  High Volume Large In-line SMT Assembly Line SMT Solutions For PCBA Manufacturing

Product Details:
Place of Origin: China
Brand Name: Charmhigh
Certification: CE
Model Number: TS10 + TM08
Document: Charmhigh TS10 - Catalog.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: wooden box
Delivery Time: 6-9 working days
Payment Terms: T/T
Supply Ability: 50 per month
Contact Now

High Volume Large In-line SMT Assembly Line SMT Solutions For PCBA Manufacturing

Description
Solder Paste Printer: Full Automatic E6 Pick N Place Mahcine: Charmhigh TS10,TM08
Reflow Oven: CHM-PC850 (8 Zones, Up8+down8) Other Machines: PCB Loader + PCB Unloader + SMT Conveyor

High Volume Large In-line SMT Assembly Line SMT Solutions For PCBA Manufacturing
Product Overview

High-precision automatic SMT production line for PCB assembly with CPK >1.0. Full turnkey SMT line solutions including pick and place systems and reflow soldering equipment. Compatible with 01005 components, BGA, QFN, and fine-pitch ICs. Ideal for high-mix, high-volume contract electronics manufacturing.

With years of experience in SMT equipment manufacturing, Charmhigh Technology delivers reliable, cost-effective, and customizable SMT line solutions for global customers.

SMT Line Configuration
  • PCB loader 250LD
  • Fully-automatic solder paste printer E6
  • Conveyor 60cm
  • TS10 10-head pick and place machine (10-head)
  • TM08 8-head pick and place machine (8-head)
  • Conveyor 60cm
  • 8-zone Reflow soldering oven CHM-PC850
  • In-line AOI S820
  • PCB unloader 250ULD

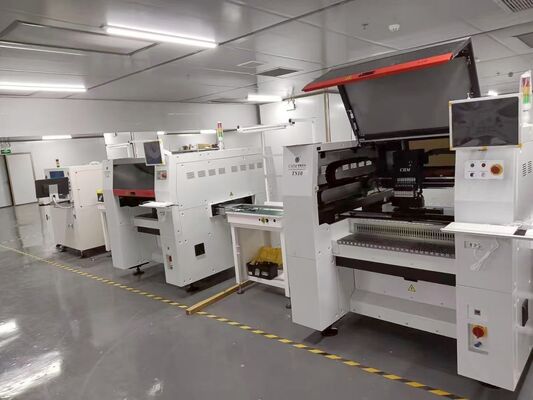

System Visuals
High Volume Large In-line SMT Assembly Line SMT Solutions For PCBA Manufacturing 0

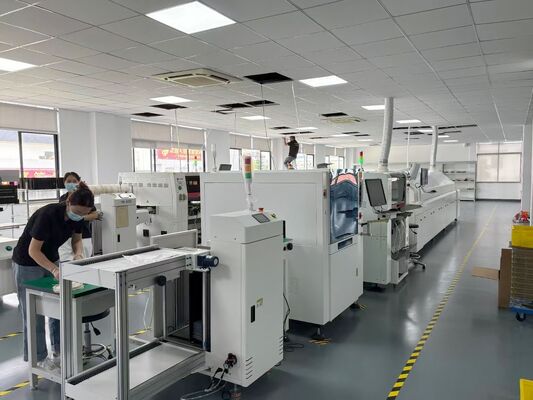

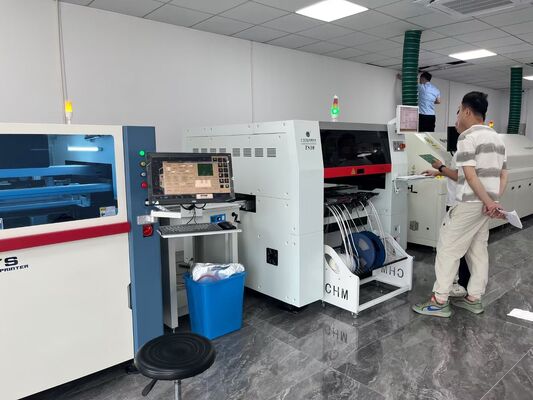

Customer Installation
High Volume Large In-line SMT Assembly Line SMT Solutions For PCBA Manufacturing 1 High Volume Large In-line SMT Assembly Line SMT Solutions For PCBA Manufacturing 2
PCB Sample
High Volume Large In-line SMT Assembly Line SMT Solutions For PCBA Manufacturing 3
Smart SMT Solutions
High Volume Large In-line SMT Assembly Line SMT Solutions For PCBA Manufacturing 4 High Volume Large In-line SMT Assembly Line SMT Solutions For PCBA Manufacturing 5
Service & Warranty

The complete machine has a warranty period of 1 year from the time of purchase with lifetime service support.

  • Factory direct spare parts supply with guarantee
  • Online Q/A and troubleshooting support
  • Technical advice service
  • One-to-one after-sale service
  • Each machine 100% tested before shipment
