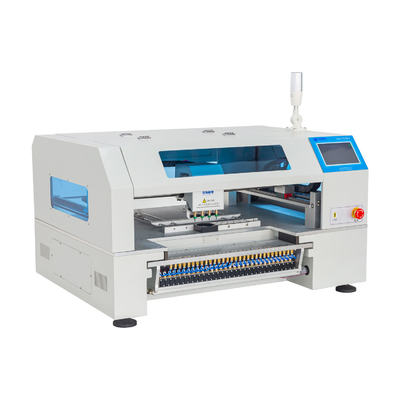

4 Heads 30 Feeders CHMT530P4 Chip Mounter with Yamaha Feeder SMD Pick and Place Machine

4 Heads 30 Feeders CHMT530P4 Chip Mounter with Yamaha Feeder SMD Pick and Place Machine
4 Heads 30 Feeders CHMT530P4 Chip Mounter with Yamaha Feeder SMD Pick and Place Machine 4 Heads 30 Feeders CHMT530P4 Chip Mounter with Yamaha Feeder SMD Pick and Place Machine 4 Heads 30 Feeders CHMT530P4 Chip Mounter with Yamaha Feeder SMD Pick and Place Machine 4 Heads 30 Feeders CHMT530P4 Chip Mounter with Yamaha Feeder SMD Pick and Place Machine 4 Heads 30 Feeders CHMT530P4 Chip Mounter with Yamaha Feeder SMD Pick and Place Machine

Large Image :  4 Heads 30 Feeders CHMT530P4 Chip Mounter with Yamaha Feeder SMD Pick and Place Machine

Product Details:
Place of Origin: China
Brand Name: Charmhigh
Certification: CE
Model Number: CHMT530P4
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $4800 USD
Packaging Details: Plywood box
Delivery Time: 2-3 days
Payment Terms: T/T, Western Union
Supply Ability: 200 Per month

4 Heads 30 Feeders CHMT530P4 Chip Mounter with Yamaha Feeder SMD Pick and Place Machine

Description
Feeder: 30pcs Yamaha CL Feeder Supported PCB Clamping Area:: 450mm(L)×330mm(W)
Placing Head: 4pcs Head(with Juki Nozzle) Precision: ±0.025mm
Components: 0402/0603-5050/SOT/SOP/QFN/BGA Etc. Demension: 1060mm(L)×780mm(W)×600mm(H)
Vision Camera Size: 22*22mm Operation System: Embedded Linux System
High Light:

2 Heads Smd Led Pick And Place Machine

,

28 Feeders SMD Pick And Place Machine

,

CHMT528P SMD Pick And Place Machine

Charmhigh Desktop SMT Chip Mounter CHMT530p4 with 4 heads 30 feeder-slots with Yamaha feeder



Description:

CHMT530P4 is an advanced SMT desktop vision pick and place machine with 30pcs standard Yamaha pneumatic feeders, Yamaha feeders accept by customers in market for many years and it is very relaible. CHMT530P4 comes with higher accuracy and faster speed, with auto calibrate mark point function, which is very suitable for small and medium SMT Manufacturing batch.



Please find video in Youtube link:

https://www.youtube.com/watch?v=gTD60m_JFK4



CHMT530P4 Product Specification

Dimensions
1060mm(L)×780mm(W)×600mm(H)
Weight
115kg
Power Supply
AC220V (50Hz, single phase) /AC110V (60Hz, single phase);
400W
Air Supply
0.5MPa~0.7MPa
Vacuum Generation
Built-in vacuum pump
Mounting Head Quantity
4
Mounting Speed
8000cph(optimal without vision detection);
5500cph (optimal with vision detection)
Control Accuracy
0.025mm
Component Type
0402/0603~5050/SOT/SOP/QFP/QFN/BGA, etc.
(resistor/capacitor/diode/triode/LED/IC, etc.)
PCB Thickness
0.6mm~3.5mm
PCB Size
10mm(L)×10mm(W)~400mm(L)×330mm(W)
PCB Conveying
Manual operation
Nozzle Change
Manual operation
Control System
Built-in computer (embedded Linux operating system),
7-inch touch screen
Drive System
X&Y-axis driven by stepping motors in the way of closed-loop control; Z-axis capable of reset detection;all motors adopting
flexible S-curve acceleration and deceleration

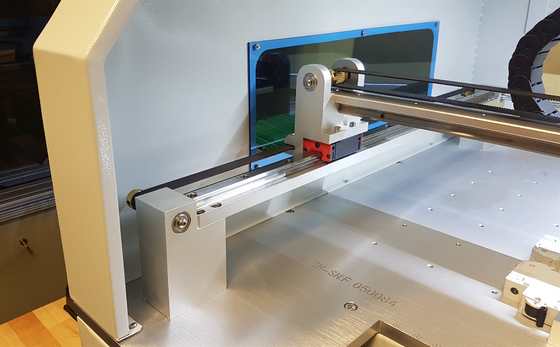

Transmission System
Synchronous belt + linear guide
Feeding System
30 Yamaha standard pneumatic feeder stacks
(also suitable for Yamaha electric feeder, IC tray, and stick feeder), 11 preset general IC stacks, work surface custom IC trays
supported

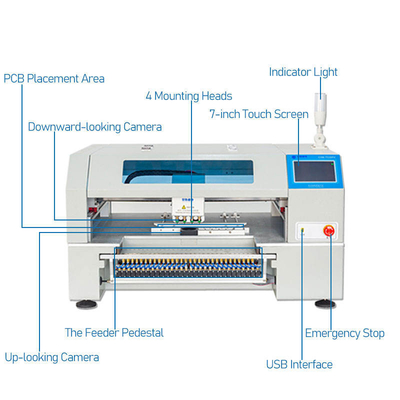

Vision System
Up-looking camera for component automatic calibration (component size applicable: 22mm×22mm); down-looking camera for PCB
calibration via Mark Point and component positioning

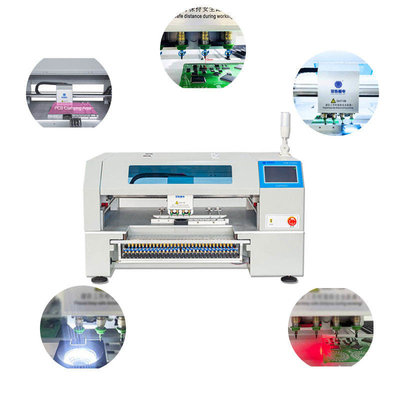

4 Heads 30 Feeders CHMT530P4 Chip Mounter with Yamaha Feeder SMD Pick and Place Machine 0

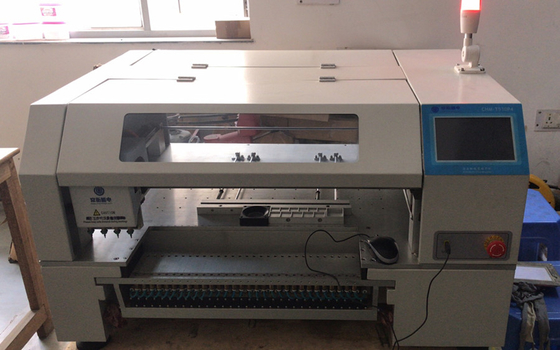

4 Heads 30 Feeders CHMT530P4 Chip Mounter with Yamaha Feeder SMD Pick and Place Machine 1

4 Heads 30 Feeders CHMT530P4 Chip Mounter with Yamaha Feeder SMD Pick and Place Machine 2

4 Heads 30 Feeders CHMT530P4 Chip Mounter with Yamaha Feeder SMD Pick and Place Machine 3

4 Heads 30 Feeders CHMT530P4 Chip Mounter with Yamaha Feeder SMD Pick and Place Machine 4

4 Heads 30 Feeders CHMT530P4 Chip Mounter with Yamaha Feeder SMD Pick and Place Machine 5

Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifelong service.
support as well as a long term factory price supply. (Artificial damage except)
We provide online Q/A and troubleshooting support and technical advice service. Provide one to one after-sale
 service.

If your machine or machine part is defect on transportation, please take photos and send to our email, we will make placement of damaged parts to you soon.


Each machine 100% test well before ship out.
Tech support:
Kimi  Mob: 0086 135 106 75756
Skype: kimiliu89
E-mail: kimi@charmhigh-tech.com





Q1: What is the lead time of your products? (How long do you need to prepare my goods?)

A: 2-3 days for 1-3 unit machine. 5-15 days for mass production orders (based on different quantities).



Q2: How will you deliver my goods to me?

A: We usually ship by international expresses such as DHL,UPS, FedEx, TNT to enable our customers get their

goods rapidly. For bigger quantity, ship by air or by sea.



Q3: How long do I need to wait before my goods arrive?

A: 3-7 days for international express. 5-8 days for air transportation. 20-40 days for sea transportation.



Q4: What is your product quality?

A: Our raw materials are purchased from qualified suppliers, the best qaulity in China. And our engineers all have over 20 years expereinces in Machinery, ensure good quality and functions. Now CharmHigh's Quality and feedback is better than other brands in China.



Standard package service:
The package of our P&Ps is standard export wooden package to avoid the damage during the transportation.



Transportation service:

For package below 200 kg , you can use DHL, Fedex or other express company, For large quantities, you could use sea delivery.
