CHMT36VA + Vibration Feeder, Vision Desktop Pick And Place Machine 0402-5050 SOP QFN

CHMT36VA + Vibration Feeder, Vision Desktop Pick And Place Machine 0402-5050 SOP QFN
CHMT36VA + Vibration Feeder, Vision Desktop Pick And Place Machine 0402-5050 SOP QFN
CHMT36VA + Vibration Feeder, Vision Desktop Pick And Place Machine 0402-5050 SOP QFN CHMT36VA + Vibration Feeder, Vision Desktop Pick And Place Machine 0402-5050 SOP QFN CHMT36VA + Vibration Feeder, Vision Desktop Pick And Place Machine 0402-5050 SOP QFN CHMT36VA + Vibration Feeder, Vision Desktop Pick And Place Machine 0402-5050 SOP QFN CHMT36VA + Vibration Feeder, Vision Desktop Pick And Place Machine 0402-5050 SOP QFN

Large Image :  CHMT36VA + Vibration Feeder, Vision Desktop Pick And Place Machine 0402-5050 SOP QFN

Product Details:
Place of Origin: China
Brand Name: Charmhigh
Certification: CE
Model Number: CHMT36VA+vibration feeder
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $3698 including shipping
Packaging Details: wooden box
Delivery Time: 1-3 days
Payment Terms: T/T,Paypal; Credit card; Western Union
Supply Ability: 100 Per month
Contact Now

CHMT36VA + Vibration Feeder, Vision Desktop Pick And Place Machine 0402-5050 SOP QFN

Description
Tape Feeder: 29pcs (8mm 22pcs; 12mm 4pcs; 16mm 2pcs; 24mm 1pcs) Place Head: 2 Heads
Speed: Vision On :2800cph; Vision Off: 4000cph Support: Tape Feeder, Cut Tape, Bulk IC, Custom IC Tray
Need External PC: Yes Support Package: 0402 To 5050, SOP, QNF, BGA
Motor: Closed-loop Control With Encoder Voltage: 220v/220v. 50/60hz
Highlight:

CHMT36VA Desktop Pick And Place Machine

,

Tabletop SMT Pick And Place Machine

,

QFN Desktop Pick And Place Machine

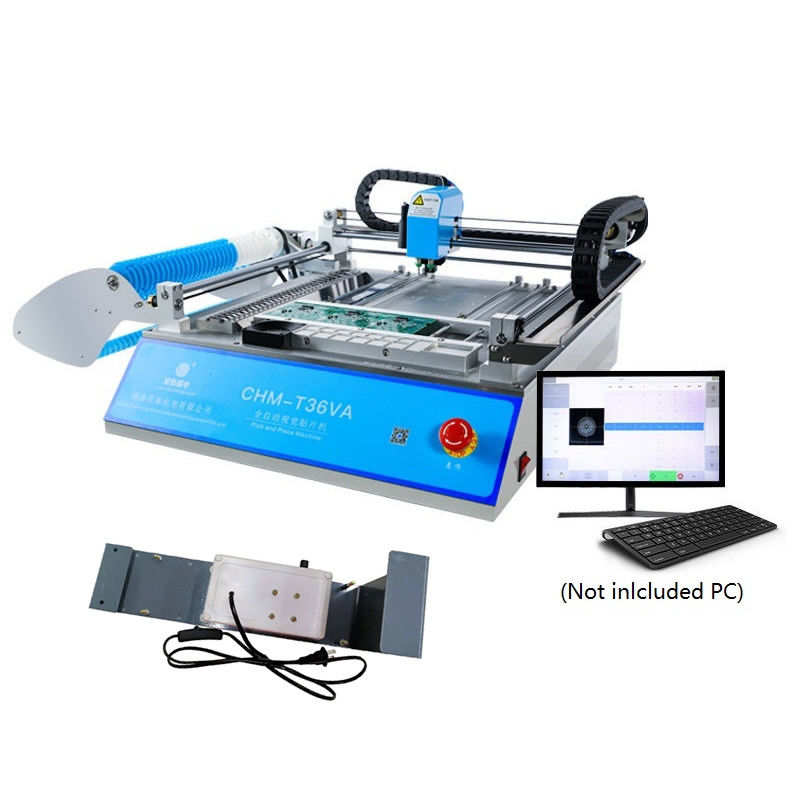

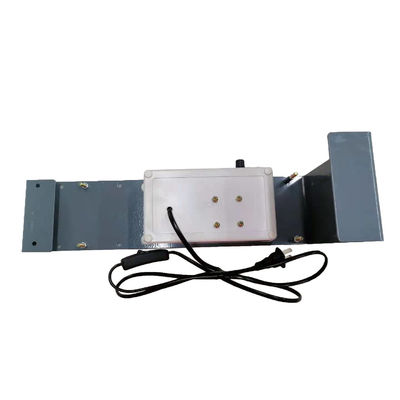

CHMT36VA + vibration feeder (for tube material) Desktop SMT Pick And Place Machine
Dual cameras CCD system​, 0402-5050,SOP, QFN.. English version, 220v 110v


Buy it from our online store with lowest price directly:

CHMT36VA+vibration feeder: https://www.charmhigh-smt.com/sale-460189-dhl-free-shipping-chmt36va-vibration-feeder-desktop-smt-pick-and-place-machine-vision-cameras-closed-loop-control-0402-5050-sop-qf.htm


CHMT36VA working video links:
Charmhigh CHMT36VA Working with 0402, 0603,0805:
www.youtube.com/watch?v=zs5b8tm1hyk
CHMT36VA Placing LED - production video:
www.youtube.com/watch?v=jYD_1U8pUm0


Description:
CHMT36VA is a vision-based desktop pick and place machine which need connect externel PC with windows 7/10 system. It is very reliable with low-cost economic model, this small platform machine comes with advance vision system, closed-loop control, 29pcs material stacks. High precision and easy operation software. It compatible all different kinds of components 0402-5050,SOP, QFN, TQFP... very suitable for for prototype builders, hobbyists, developers, and development groups and small batches production, you just need to prepare a computer which has USB port. HS code 8479899200. Pick and place machine.

Specifications:

Model CHM-T36VA
PCB area 10mm*10mm - 355mm*355mm
X Y axis Travel 420*460mm
Z axis moving range 15mm (Max component height 5mm)
Placement heads 2pcs
Feeders

8mm=22pcs, 12mm=4pcs, 16mm=2pcs, 24mm=1pcs,
Front IC tray=14pcs, custom IC tray 10pcs
Vision system Dual cameras(up & down cameras)
Drive Closed-loop control stepper servo drive system, make sure never lose step
Z axis self-return detection Yes, prevent nozzles breaking
Pull pin self-return Yes
Leakage of material detection method Vacuum detection, vision detection
Mounting speed 4000cph (vision off); 2800cph (vision on)
Mounting precision ±0.025mm
Components 0402-5050,SOP,QFN..etc (tape width: 8MM,12MM,16MM,24MM)
Machine dimension L 960mm * W 705mm * H 335mm
Vacuum pump -92KPA (2pcs,build-in, mute type)
External air source No need (machine build-in mute vacuum pump 2pcs)
External PC Yes (software compatible with windows10)
Voltage 220V (110V),50/60Hz
Net weight 50kg
Gross weight 75kg / 108*80*53cm


Applications industry:
Household appliances industry, Auto electronics industry, Power industry, LED industry, security,instruments and meters industry, communications industry, intelligent control industry, Internet of Things(IOT) industry and military industry, etc.

Detail Real pictures: (100% Real)

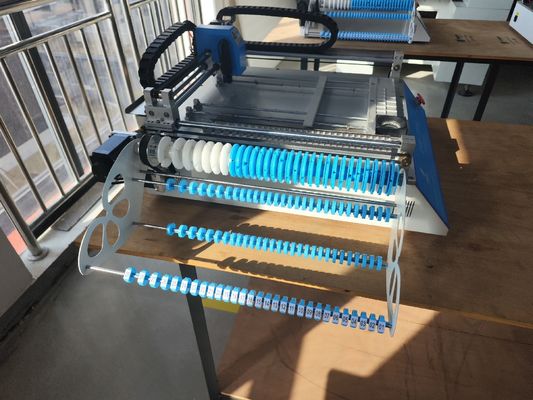

CHMT36VA + Vibration Feeder, Vision Desktop Pick And Place Machine 0402-5050 SOP QFN 0

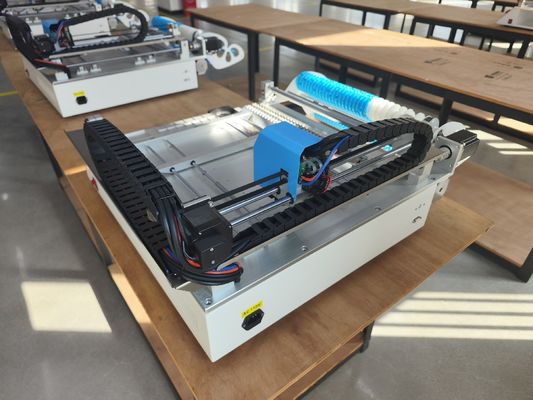

CHMT36VA + Vibration Feeder, Vision Desktop Pick And Place Machine 0402-5050 SOP QFN 1
CHMT36VA + Vibration Feeder, Vision Desktop Pick And Place Machine 0402-5050 SOP QFN 2
CHMT36VA + Vibration Feeder, Vision Desktop Pick And Place Machine 0402-5050 SOP QFN 3

X,Y axis motor with encoder, Losed-loop control to prevent lose steps:
  CHMT36VA + Vibration Feeder, Vision Desktop Pick And Place Machine 0402-5050 SOP QFN 4

CHMT36VA + Vibration Feeder, Vision Desktop Pick And Place Machine 0402-5050 SOP QFN 5
CHMT36VA + Vibration Feeder, Vision Desktop Pick And Place Machine 0402-5050 SOP QFN 6

4pcs high precision Juki Nozzles:  503 504 505 506
CHMT36VA + Vibration Feeder, Vision Desktop Pick And Place Machine 0402-5050 SOP QFN 7

Placing samples:
CHMT36VA + Vibration Feeder, Vision Desktop Pick And Place Machine 0402-5050 SOP QFN 8

CHMT36VA + Vibration Feeder, Vision Desktop Pick And Place Machine 0402-5050 SOP QFN 9
CHMT36VA + Vibration Feeder, Vision Desktop Pick And Place Machine 0402-5050 SOP QFN 10

CHMT36VA + Vibration Feeder, Vision Desktop Pick And Place Machine 0402-5050 SOP QFN 11

Shipping method:

CHMT36VA + Vibration Feeder, Vision Desktop Pick And Place Machine 0402-5050 SOP QFN 12
Service & Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machine, factory reliable direct supply.
We provide online Q/A and troubleshooting support and technical advice service.
Provide one to one after-sale service. Each machine 100% tested well before ship out.
Tech support:
Kimi Mob/ WhatsApp: 0086 135 106 75756
Skype: kimiliu89
E-mail: kimi@charmhigh-tech.com
(CHARMHIGH) YOUTUBE CHANNEL: https://www.youtube.com/@KimiLiuCharmhigh/videos
