Lead-free Wave Soldering Machine 250mm PCB Width DIP Production Line

Lead-free Wave Soldering Machine 250mm PCB Width DIP Production Line
Lead-free Wave Soldering Machine 250mm PCB Width DIP Production Line
Lead-free Wave Soldering Machine 250mm PCB Width DIP Production Line Lead-free Wave Soldering Machine 250mm PCB Width DIP Production Line Lead-free Wave Soldering Machine 250mm PCB Width DIP Production Line Lead-free Wave Soldering Machine 250mm PCB Width DIP Production Line Lead-free Wave Soldering Machine 250mm PCB Width DIP Production Line Lead-free Wave Soldering Machine 250mm PCB Width DIP Production Line

Large Image :  Lead-free Wave Soldering Machine 250mm PCB Width DIP Production Line

Product Details:
Place of Origin: China
Brand Name: Charmhigh
Certification: CE
Model Number: 250DS
Document: 250DS wave soldering -Instr...on.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: $5460
Packaging Details: Plywood box
Delivery Time: 4-8 days
Payment Terms: T/T
Supply Ability: 100 Per month
Contact Now

Lead-free Wave Soldering Machine 250mm PCB Width DIP Production Line

Description
Dimension: 2600*1200*1600mm Control Way: Touch Screen
PCB Deliver Speed: 0-1.8m/min Heating Way: Hot Air
Power: 3 Phase 5 Lines, 380v 50hz Air Source: 4-7KG/CM2 12.5L/Min
Net Weight: 800kg Wave Soldering Number: 2
PCB Width: Max 250mm
Highlight:

Small Wave Soldering Machine

,

Lead-free Wave Soldering Machine

,

PCB DIP Wave Soldering Machine

Small Lead-free Wave Soldering Machine 250DS For PCB DIP Production Line
Full Automatic Lead-free Wave Soldering Machine
Advanced 250DS wave soldering system designed for PCB DIP production lines, featuring lead-free operation and comprehensive automation.
Key Features & Benefits
  • Suitable for SMD and THT component soldering with streamlined, aesthetically pleasing design
  • Modular preheating zone and filtration system with direct pull-out design for easy maintenance
  • Two-stage preheating zone ensures stable heating curve and prevents PCB deformation
  • Intelligent automatic tracking spray system adjusts to PCB width automatically
  • Programmable logic controller (PLC) with internal speed tracking program
  • Automatic flux nozzle cleaning device eliminates manual cleaning requirements
  • Special spiral furnace chamber design prevents floating black powder generation
  • Unique SINOEVER guide rail design ensures complete and smooth PCB soldering
  • Variable frequency drive technology for precise wave peak height control
  • Energy storage nickel-chromium infrared heating tubes for even heating and long service life
  • Comprehensive safety features including over-temperature and audio-visual alarms
  • Closed-loop variable speed control system for stable transport operation
  • Spray exhaust filter plate reduces emission pollution
  • Precision titanium alloy spring claws for reliable PCB transport
  • PLC and touch screen control system for simple operation and high reliability
Technical Specifications
Parameter Specification
PCB Board Width Max 250mm
PCB Conveyor Height 750±20mm
PCB Conveyor Speed 0-1.8m/min
Preheating Length 800mm
Preheating Zones 2
Preheating Temperatures Room temperature ~ 350℃
Suitable Solder Type Leaded/Lead-free solder paste
Preheating Capacity 5KW
Wave Solder Pot 8KW
Crest Value of Solder Waves Max 10mm (Impact depth up to 30mm)
Solder Volume 180KG
Solder Temperature Room temperature ~ 320℃
Conveyor Angle 3-7 degrees
Temperature Control PLC + PID
Flux Storage Tank Max 5.2L
Power Requirements 3P 5wires 380V/220V option
Power for Heating Up 12KW
Power for Operation MAX 5KW
Air Supply 4-7kg/cm² 12.5L/min
Weight Max 600kg
Dimensions L2400 × W1150 × H1500
Product Images

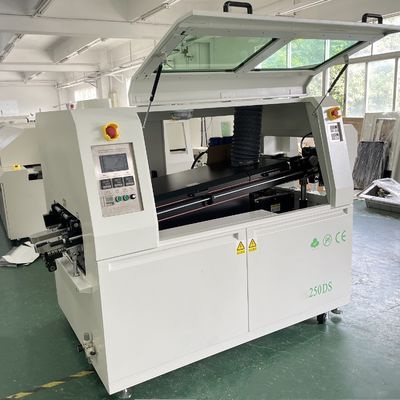

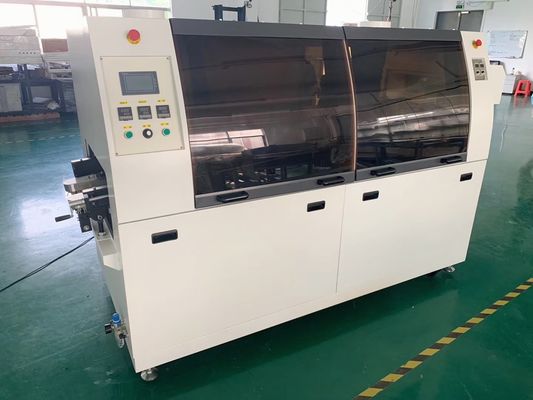

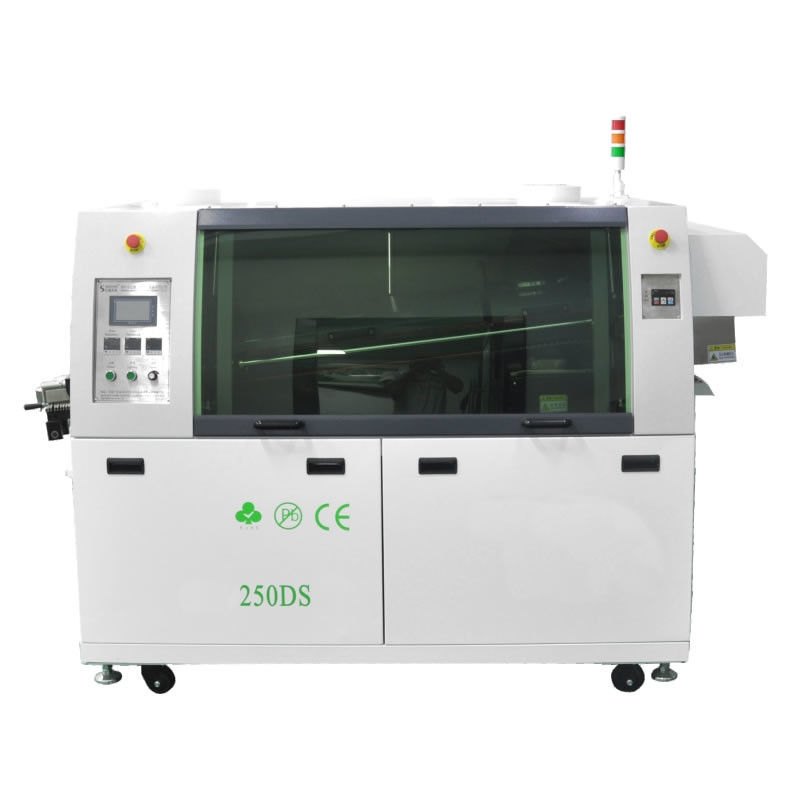

Lead-free Wave Soldering Machine 250mm PCB Width DIP Production Line 0 Lead-free Wave Soldering Machine 250mm PCB Width DIP Production Line 1
Lead-free Wave Soldering Machine 250mm PCB Width DIP Production Line 2 Lead-free Wave Soldering Machine 250mm PCB Width DIP Production Line 3

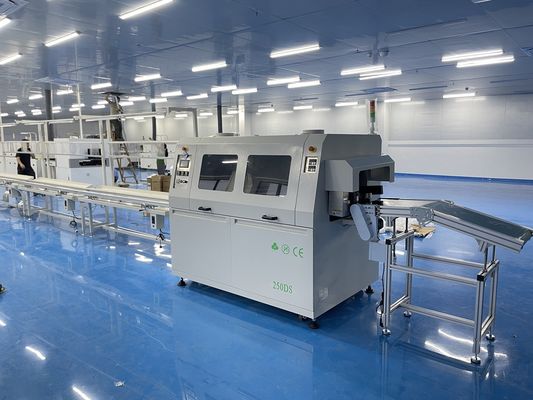

Loader & Unloader Conveyor System
Lead-free Wave Soldering Machine 250mm PCB Width DIP Production Line 4 Lead-free Wave Soldering Machine 250mm PCB Width DIP Production Line 5
Contact Information
Contact: Kimi Liu
Company: Charmhigh Technology Limited
Mobile/WhatsApp: +8613510675756
Email: kimi@charmhigh-tech.com
YouTube Channel: Kimi Liu Charmhigh Videos
For more information, please contact us by email. We will respond promptly.
