Charmhigh 250DS Lead-Free Automatic Wave Soldering Machine for PCB Assembly

Description

Controlling Method:	Touch Screen+PLC	PCB Width:	50-250mm (W)
Wave No.:	2pcs; Length 800mm	Net Weight:	550kg
Dimension:	260012001700mm	Conveyor Speed:	0-1800mm/minute
Highlight:	PCB wave soldering equipment , Automatic Wave Soldering Machine For PCB , Lead Free PCB Wave Soldering Machine

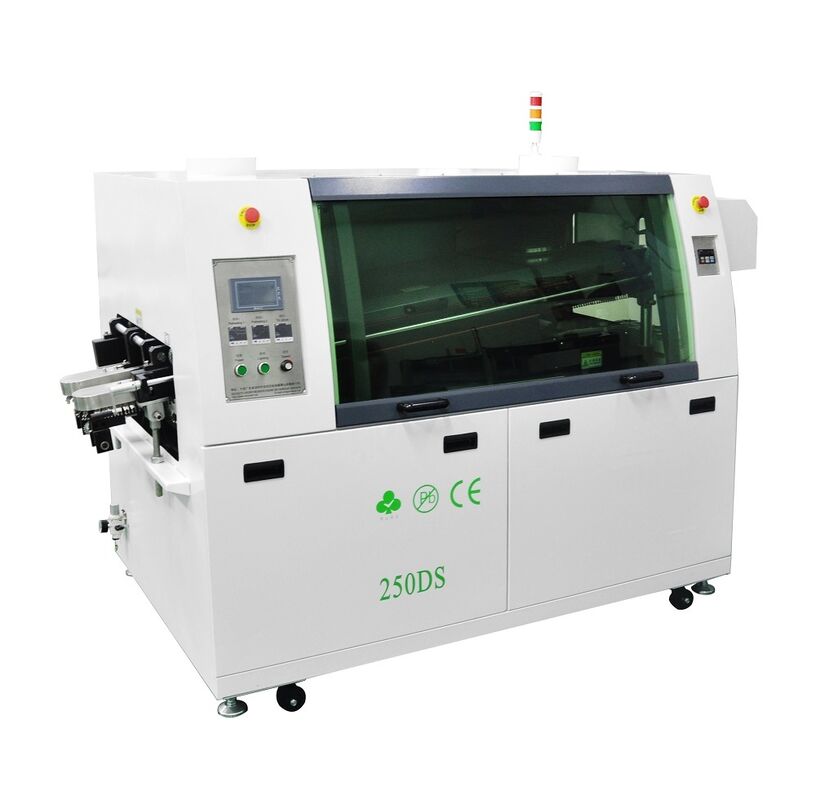

Charmhigh 250DS Automatic Wave Soldering Machine

Lead-Free Wave Soldering System for DIP Production Line PCB Assembly

Key Features & Benefits

Suitable for both SMD and THT component soldering with streamlined, aesthetically pleasing design
Modular preheating zone and filtration system with direct pull-out design for easy maintenance
Two-stage preheating zone ensures stable heating curve and prevents PCB deformation
Intelligent automatic tracking spray system adjusts to PCB width variations

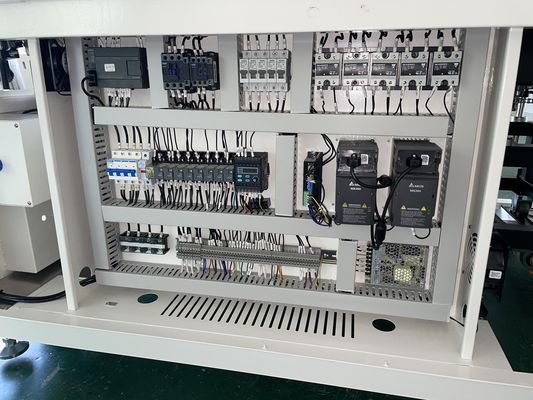

Programmable logic controller (PLC) with internal speed tracking for optimized spray timing
Automatic flux nozzle cleaning device eliminates manual maintenance requirements
Special spiral furnace chamber design reduces thermal deformation and oxidation
Unique guide rail design ensures complete and smooth PCB soldering and transmission
Variable frequency drive technology for precise wave peak height control
Energy-efficient nickel-chromium infrared heating tubes with long service life
Comprehensive safety features including over-temperature alarms and emergency braking
Closed-loop variable speed control system for stable transport operation
Spray exhaust filter plate reduces emission pollution and simplifies cleaning
Precision titanium alloy spring claws for reliable, non-stick PCB transport
User-friendly PLC and touch screen control interface for easy operation

Technical Specifications

Parameter	Specification
PCB Board Width	Max 250mm
PCB Conveyor Height	750±20mm
PCB Conveyor Speed	0-1.8m/min
Preheating Length	800mm
Preheating Zones	2
Preheating Temperatures	Room temperature ~ 350℃
Solder Type Compatibility	Leaded/Lead-free solder paste
Preheating Capacity	5KW
Wave Solder Pot	8KW
Crest Value of Solder Waves	Max 10mm (Impact depth up to 30mm)
Solder Volume	180KG
Solder Temperature	Room temperature ~ 320℃
Conveyor Angle	3-7 degrees
Temperature Control	PLC + PID
Flux Storage Tank	Max 5.2L
Power Requirements	3P 5-wires 380V/220V option
Heating Power	12KW
Operation Power	MAX 5KW
Air Supply	4-7kg/cm², 12.5L/min
Weight	Max 600kg
Dimensions	L2400 * W1150 * H1500
