Lead-Free Wave Soldering Machine 250DS 300DS 350DS with Automatic Conveying for PCB DIP Production Line

Lead-Free Wave Soldering Machine 250DS 300DS 350DS with Automatic Conveying for PCB DIP Production Line
Lead-Free Wave Soldering Machine 250DS 300DS 350DS with Automatic Conveying for PCB DIP Production Line
Lead-Free Wave Soldering Machine 250DS 300DS 350DS with Automatic Conveying for PCB DIP Production Line Lead-Free Wave Soldering Machine 250DS 300DS 350DS with Automatic Conveying for PCB DIP Production Line Lead-Free Wave Soldering Machine 250DS 300DS 350DS with Automatic Conveying for PCB DIP Production Line Lead-Free Wave Soldering Machine 250DS 300DS 350DS with Automatic Conveying for PCB DIP Production Line Lead-Free Wave Soldering Machine 250DS 300DS 350DS with Automatic Conveying for PCB DIP Production Line Lead-Free Wave Soldering Machine 250DS 300DS 350DS with Automatic Conveying for PCB DIP Production Line

Large Image :  Lead-Free Wave Soldering Machine 250DS 300DS 350DS with Automatic Conveying for PCB DIP Production Line

Product Details:
Place of Origin: China
Brand Name: Charmhigh
Certification: CE
Model Number: 250DS; 300DS; 350DS
Document: 250DS wave soldering -Instr...on.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: $5460
Packaging Details: Plywood box
Delivery Time: 5-7 days
Payment Terms: T/T,Western Union
Supply Ability: 50 Per month
Contact Now

Lead-Free Wave Soldering Machine 250DS 300DS 350DS with Automatic Conveying for PCB DIP Production Line

Description
Dimension: 2600*1200*1600mm PCB Deliver Speed: 0-1.8m/min
Heating Way: Hot Air Power: 3 Phase 5 Lines, 380v 50hz
Air Source: 4-7KG/CM2 12.5L/Min Net Weight: 800kg
Wave Soldering Number: 2 PCB Width: 250/300/350mm
Highlight:

Lead-free Wave Soldering Machine

,

Wave Soldering Machine for PCB

,

hot air pcb wave soldering machine

Lead-Free Wave Soldering Machine 250DS 300DS 350DS
Full automatic lead-free wave soldering machines designed for PCB DIP production lines, available in three models to accommodate different board widths.
Key Features
  • Automatic conveying power system with synchronous board feeding
  • Frequency converting speed adjustment for independent wave height control
  • Transverse Japanese spray nozzle fluxer system with adjustable spray area and depth
  • Stepper motor-driven flux sprayer for easy disassembly and maintenance
  • PLC control system ensuring reliability and stability
  • Infrared pre-heaters for efficient heat radiation and fast ramp-up
  • Special alloy solder fingers with strengthened double V-groove
  • Imported high-frequency conversion solder motor for stable performance
  • Modularized pre-heater passage design for environmental compliance
  • Three independent temperature control zones
Technical Specifications
Parameter Specification
PCB Board Width Max 250mm / 300mm / 350mm (3 models)
PCB Conveyor Height 750±20mm
PCB Conveyor Speed 0-1.8 m/min
Preheating Length 800mm
Preheating Zones 2
Preheating Temperatures Room temperature ~ 350℃
Suitable Solder Type Leaded / Lead-free solder paste
Preheating Capacity 5KW
Wave Solder Pot 8KW
Crest Value of Solder Waves Max 10mm (Impact depth up to 30mm)
Solder Volume 180KG
Solder Temperature Room temperature ~ 320℃
Conveyor Angle 3-7 degrees
Temperature Control PLC + PID
Flux Storage Tank Max 5.2L
Power Requirements 3P 5-wires 380V/220V option
Power for Heating Up 12KW
Power for Operation MAX 5KW
Air Supply 4-7kg/cm², 12.5L/min
Weight Max 600kg
Dimensions L2400 × W1150 × H1500 mm
Product Images

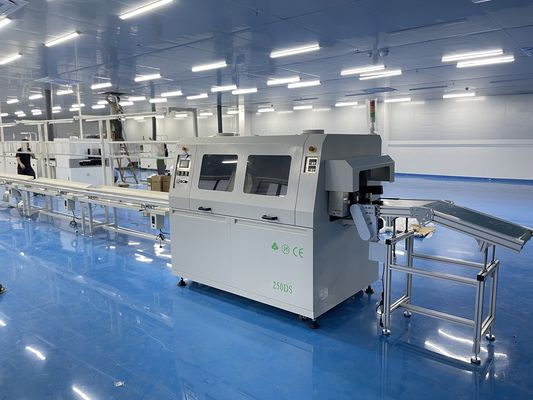

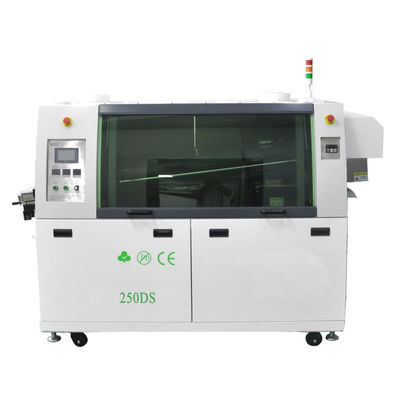

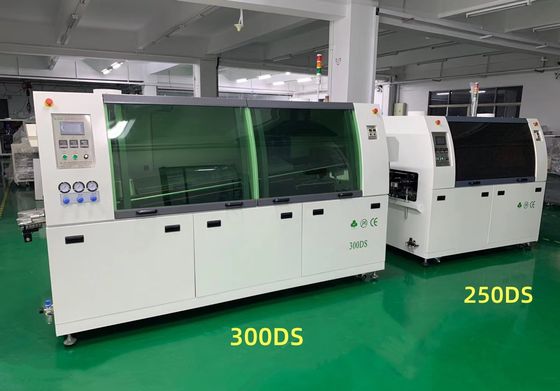

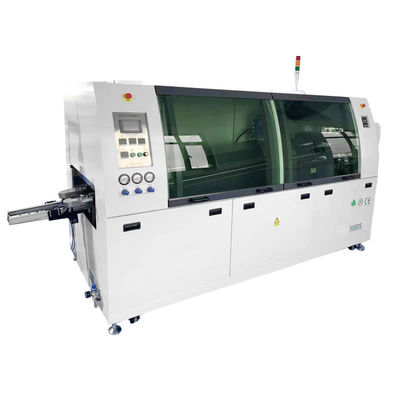

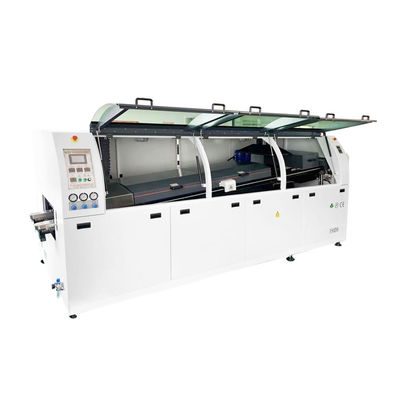

Lead-Free Wave Soldering Machine 250DS 300DS 350DS with Automatic Conveying for PCB DIP Production Line 0 Lead-Free Wave Soldering Machine 250DS 300DS 350DS with Automatic Conveying for PCB DIP Production Line 1 Lead-Free Wave Soldering Machine 250DS 300DS 350DS with Automatic Conveying for PCB DIP Production Line 2 Lead-Free Wave Soldering Machine 250DS 300DS 350DS with Automatic Conveying for PCB DIP Production Line 3 Lead-Free Wave Soldering Machine 250DS 300DS 350DS with Automatic Conveying for PCB DIP Production Line 4
Support & Contact
Kimi Liu
Charmhigh Technology Limited
Mobile/WhatsApp: +8613510675756
YouTube Channel: @KimiLiuCharmhigh
For more information, please contact us by email. We will respond promptly.
Service & Warranty
Complete machine warranty period of 1 year from purchase date with lifetime service support.
  • Factory direct supply of spare parts with guarantee
  • Online Q/A and troubleshooting support with technical advice
  • One-to-one after-sales service
  • Each machine 100% tested before shipment
