Benchtop Manual SMT Screen Printer for Double-Sided PCB Assembly, 300×400mm Solder Paste Printing

Benchtop Manual SMT Screen Printer for Double-Sided PCB Assembly, 300×400mm Solder Paste Printing
Benchtop Manual SMT Screen Printer for Double-Sided PCB Assembly, 300×400mm Solder Paste Printing Benchtop Manual SMT Screen Printer for Double-Sided PCB Assembly, 300×400mm Solder Paste Printing Benchtop Manual SMT Screen Printer for Double-Sided PCB Assembly, 300×400mm Solder Paste Printing Benchtop Manual SMT Screen Printer for Double-Sided PCB Assembly, 300×400mm Solder Paste Printing Benchtop Manual SMT Screen Printer for Double-Sided PCB Assembly, 300×400mm Solder Paste Printing

Large Image :  Benchtop Manual SMT Screen Printer for Double-Sided PCB Assembly, 300×400mm Solder Paste Printing

Product Details:
Place of Origin: China
Brand Name: Charmhigh
Certification: CE
Model Number: Stencil Printer 3040
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $390 free shipping
Packaging Details: carton box
Delivery Time: 1-2 days
Payment Terms: T/T; Western Union
Supply Ability: 300 per month
Contact Now

Benchtop Manual SMT Screen Printer for Double-Sided PCB Assembly, 300×400mm Solder Paste Printing

Description
Print Size: 250*400mm PCB Size: 270*370(mm)
Print Way: Manual Dimension: 580*320*259(mm）

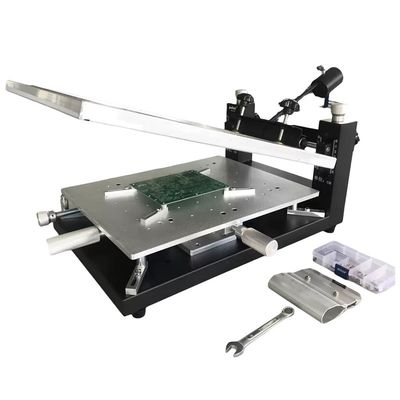

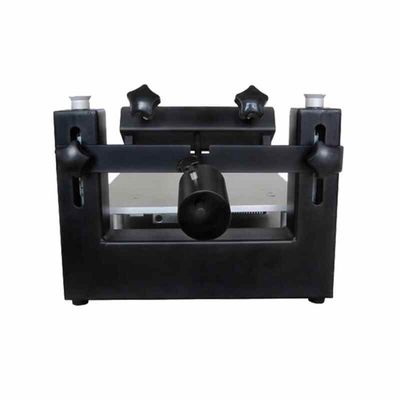

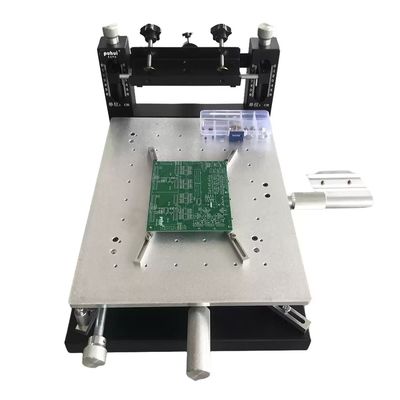

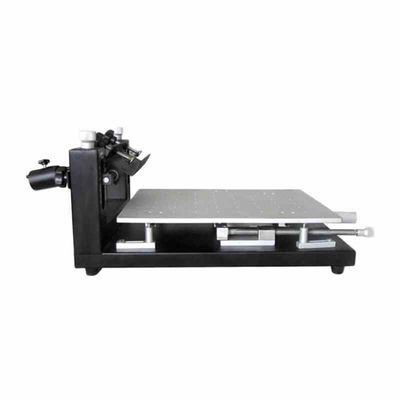

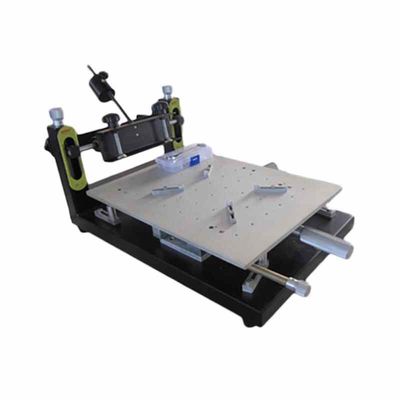

High Precision Benchtop Manual SMT Screen Printer for Double-Sided PCB Assembly, 300x400mm Solder Paste Printing

Description:

3040 High-Precision Manual Solder Paste Printer​

​1. 30° Rotatable Platform:

The worktable supports up to 30° rotation while maintaining consistent positioning accuracy during repeated operations, ideal for double-sided PCB printing.

2.​ PCB Alignment & Flexibility:

Features fixed beads and posts for quick PCB alignment, ensuring high repeatability (±0.01mm) and adaptability to various board sizes.

3. ​Adjustable Height Brackets:

Equipped with spiral bolt bars for precise vertical adjustment, enabling control over PCB thickness and solder paste deposition volume.

4. ​Sturdy Construction:

High-quality aluminum platform with steel-reinforced base enhances durability and stability during printing.


Purcahse from our Online store directly with free shipping (by PayPal):

https://www.charmhigh-smt.com/sale-489915-high-precision-manual-smt-screen-printer-for-pcb-300-400mm-solder-paste-printing-machine.htm


Work table size 300*400mm
PCB size 270*370mm
Max net frame size 370*470mm
Stencil printer dimension 580*320*259mm
Screen printing platform height 180mm
PCB board positioning method Shape or Reference Hole
Printing platform height 220mm
repeated accuracy ±0.01mm
Overall Dimensions(L*W*H) 580*320*259mm
Net weight 13kg


Benchtop Manual SMT Screen Printer for Double-Sided PCB Assembly, 300×400mm Solder Paste Printing 0

1.Upper and lower adjusting handle

2.Stencil bracket

3.Embossing star knob

4.Platform

5.PCB fixation unit

6.X-axis adjusting handle

7.Y-axis adjusting handle

8.Swing adjusting handle

9.Support pin

10.Platform support base block

11.PCB position block


Benchtop Manual SMT Screen Printer for Double-Sided PCB Assembly, 300×400mm Solder Paste Printing 1

Benchtop Manual SMT Screen Printer for Double-Sided PCB Assembly, 300×400mm Solder Paste Printing 2

Benchtop Manual SMT Screen Printer for Double-Sided PCB Assembly, 300×400mm Solder Paste Printing 3

Benchtop Manual SMT Screen Printer for Double-Sided PCB Assembly, 300×400mm Solder Paste Printing 4

Benchtop Manual SMT Screen Printer for Double-Sided PCB Assembly, 300×400mm Solder Paste Printing 5


Small SMT Production Line:

Benchtop Manual SMT Screen Printer for Double-Sided PCB Assembly, 300×400mm Solder Paste Printing 6


Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifelong service
support as well as a long term factory price supply.
We provide online Q/A and troubleshooting support and technical advice service. Provide one to one after-sale service.
Each machine 100% test well before ship out.
Tech support:
Kimi Liu's WhatsApp & Mob: 0086 135 106 75756
Skype: kimiliu89
E-mail: kimi@charmhigh-tech.com
Charmhigh Youtube channel: https://www.youtube.com/@KimiLiuCharmhigh/videos

If you want to see more information and videos, please contact us by E-mail.

We will response you at the first time.


Charmhigh, your reliable partner.

Benchtop Manual SMT Screen Printer for Double-Sided PCB Assembly, 300×400mm Solder Paste Printing 7
