Better Design Manual Stencil Printer 4532 Oil Pressure SMT Silk Printer 45x32cm

Large Image : Better Design Manual Stencil Printer 4532 Oil Pressure SMT Silk Printer 45x32cm

Product Details:

Place of Origin:	China
Brand Name:	Charmhigh
Certification:	CE
Model Number:	Stencil Printer 3040
Document:	Hydraulic Cylinder 4532 ste...og.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	$540 free shipping
Packaging Details:	Carton box
Delivery Time:	1-2 days
Payment Terms:	T/T; Western Union; PayPal
Supply Ability:	300 per month

Contact Now

Better Design Manual Stencil Printer 4532 Oil Pressure SMT Silk Printer 45x32cm

Description

Work Table Size:	320*450mm	Type:	High Precision Manual Type
Printer Size:	280*400mm	Dimension:	636366230 Mm
Weight:	19kg	PCB Layer:	2 Layers

Better Design Manual Stencil Printer 4532 Oil Pressure SMT Silk Printer 45x32cm

Hydraulic Pneumatic Frameless Stencil Printer 4532 updated from 3040 model, with oil pressure cylinder drive and reusable tensioning system. 70% lower stencil cost vs. framed. Ideal for prototype SMT, low-volume production, and flexible PCB assembly.

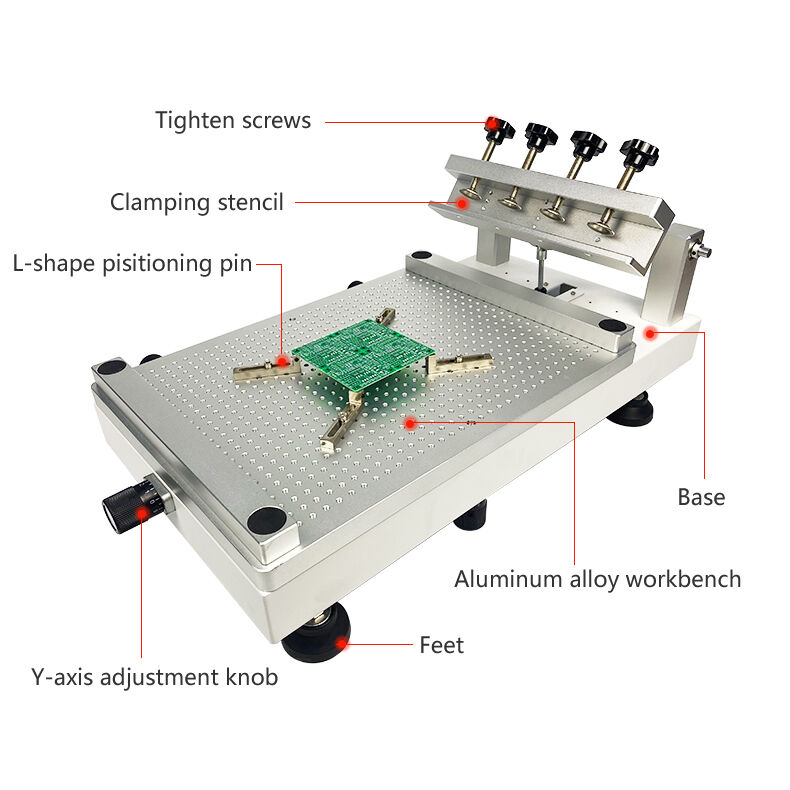

4532 Screen Printing Table Features

Craftsmanship & Design: Precise construction with smooth, angled edges and intuitive hydraulic system for comfortable operation
Precision & Stability: High printing accuracy with solid build quality for consistent, repeatable positioning
Space-Saving & Convenient: Eliminates counterweight requirement, saving space while maintaining ease of use
Aesthetics & Functionality: Attractive work surface with fine workmanship and effective hydraulic support
Adjustability: Detailed adjustments in all directions and height via screws or screen clamp raising
Efficiency: Notable productivity boost reported by users after adoption

Buy directly from our online store at the lowest price:
4532 Hydraulic Stencil Printer

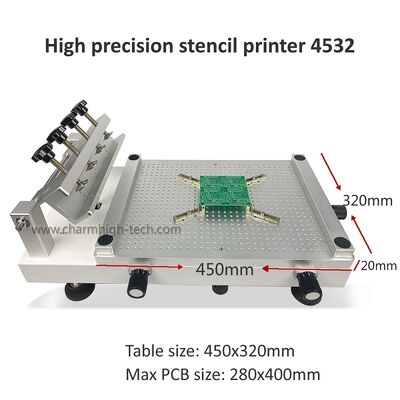

Technical Specifications

Specification	Value
Work table size	450×320mm
Print size	280×400mm
Max steel mesh size	420×520mm
Printer way	Manual
Thickness of printing material	0-17mm
The workbench adjust volume	10mm
Printing platform height	230mm
Repeated accuracy	±0.01mm
Locate mode	Reference hole
Dimension	636×366×230 mm
Packing size	70×44×26cm
Weight	NW.19 kg

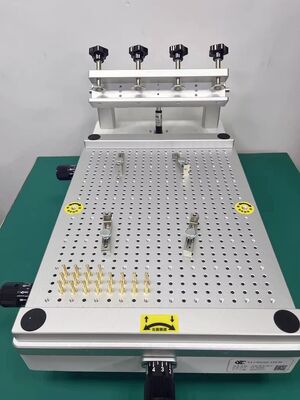

Product Images

Updated Model from 3040

Service & Warranty

The complete machine has a warranty period of 1 year from purchase date with lifetime service support.
We provide reliable factory-direct spare parts supply.
Online Q/A, troubleshooting support, and technical advice services available.
One-to-one after-sales service provided.
Each machine is 100% tested before shipping.
