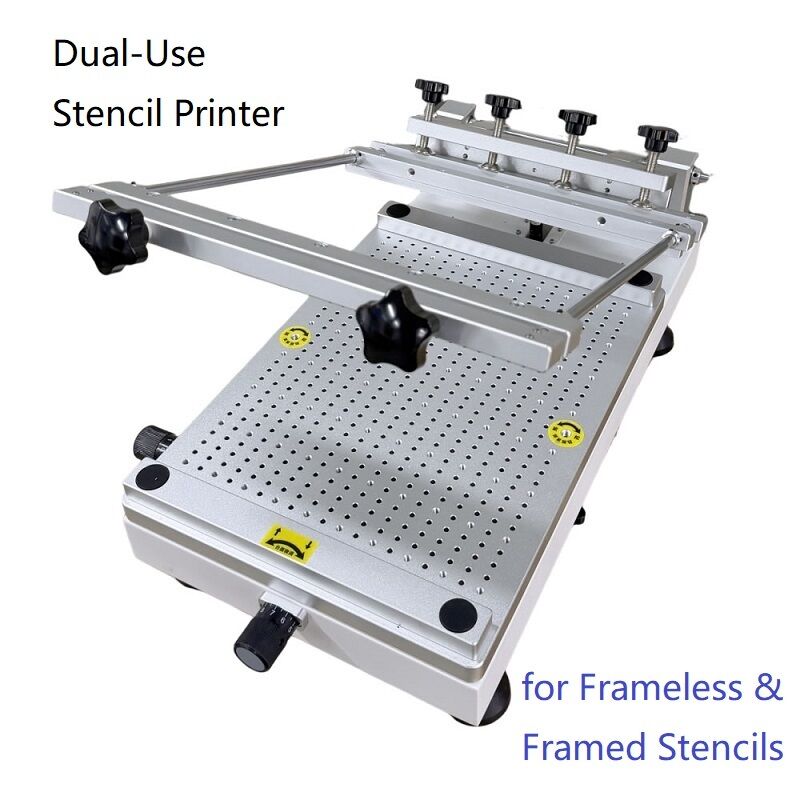

Dual-use Framed & Frameless Stencils Manual SMT Solder Paste Printer 4532

Dual-use Framed & Frameless Stencils Manual SMT Solder Paste Printer 4532
Dual-use Framed & Frameless Stencils Manual SMT Solder Paste Printer 4532
Dual-use Framed & Frameless Stencils Manual SMT Solder Paste Printer 4532 Dual-use Framed & Frameless Stencils Manual SMT Solder Paste Printer 4532 Dual-use Framed & Frameless Stencils Manual SMT Solder Paste Printer 4532 Dual-use Framed & Frameless Stencils Manual SMT Solder Paste Printer 4532 Dual-use Framed & Frameless Stencils Manual SMT Solder Paste Printer 4532

Large Image :  Dual-use Framed & Frameless Stencils Manual SMT Solder Paste Printer 4532

Product Details:
Place of Origin: China
Brand Name: Charmhigh
Certification: CE
Model Number: Stencil Printer 4532
Document: Hydraulic Cylinder 4532 ste...og.pdf
Payment & Shipping Terms:
Price: $870 free shipping
Packaging Details: Carton box
Delivery Time: 1-2 days
Payment Terms: T/T; Western Union; PayPal
Supply Ability: 300 per month
Contact Now

Dual-use Framed & Frameless Stencils Manual SMT Solder Paste Printer 4532

Description
Work Table Size: 320*450mm Type: High Precision Manual Type
Printer Size: 280*400mm Dimension: 636*366*230 Mm
Weight: 21kg PCB Layer: 2 Layers
Highlight:

dual-use SMT solder paste printer

,

framed frameless stencil printer

,

manual stencil printer 4532

Dual-use Framed & Frameless Stencils Manual SMT Solder Paste Printer 4532
Better Design Dual-use Manual SMT Stencil Printer 4532
Frameless & Framed Screen Compatible Oil Pressure SMT Silk Printer 45x32cm

The Universal Manual SMT Stencil Printer is designed for flexible PCB solder paste printing and supports both framed and frameless SMT stencils. Its adjustable stencil positioning system provides stable and accurate alignment for consistent solder paste application.

Ideal for PCB prototyping, SMT assembly, small-batch production, electronics repair, and educational applications, this manual stencil printer offers a practical and cost-effective solution for precision PCB printing.

Available Versions
  • Normal stencil printer - only for stencil with frame
  • Frameless stencil printer - only for stencil without frame
  • Dual-Use Manual Screen Printer for Frameless & Framed Stencils
Purchase Options

Buy directly from our online store at the lowest price:

Key Features
  • Framed & Frameless Stencil Compatible - supports both framed and frameless SMT stencils for greater flexibility
  • Manual Operation - simple mechanical operation without the need for compressed air or complex controls
  • Adjustable Alignment - fine adjustment of PCB and stencil positioning helps achieve accurate printing results
  • Stable PCB Support - provides a secure platform for consistent solder paste printing
  • Compact Design - space-saving construction suitable for workshops, laboratories, and small SMT production lines
  • Easy to Operate - suitable for beginners as well as experienced SMT operators
  • Cost-Effective SMT Solution - economical choice for prototype development and low-volume PCB assembly
Applications
  • PCB Prototyping
  • SMT Solder Paste Printing
  • Small-Batch PCB Assembly
  • Electronics Manufacturing
  • PCB Repair and Rework
  • R&D Laboratories
  • Electronics Training and Education
4532 Technical Parameters
Work table size 450*320mm
Print size 280*400mm
Max steel mesh size 420*520mm
Printer way Manual
Thickness of printing material 0-17mm
The workbench adjust volume 10mm
Printing platform height 230mm
Repeated accuracy ±0.01mm
Locate mode Reference hole
Dimension 636*366*230 mm
Packing size 70*44*26cm
Weight NW.19 kg
Product Images

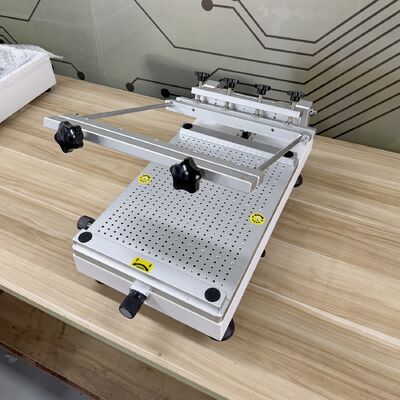

Normal version manual SMT stencil printer with framed stencil Close-up view of SMT stencil printer mechanism Manual SMT stencil printer in operation

A universal manual SMT stencil printer designed for both framed and frameless stencils, ideal for PCB prototyping, small-batch production, and electronics assembly.

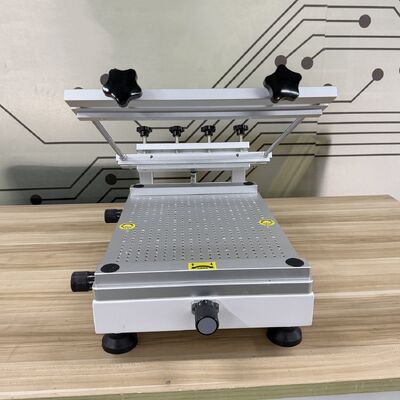

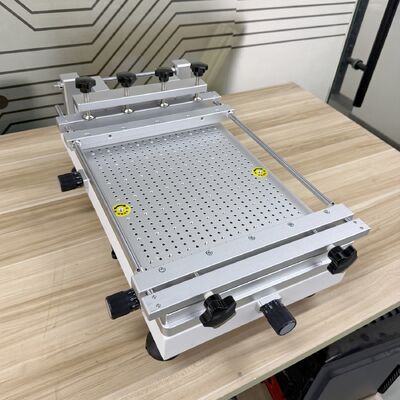

SMT stencil printer side view and controls Dual-use stencil printer compatible with frameless stencil Frameless stencil printing demonstration
Service & Warranty

The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.

We always provide spare parts of machine, factory reliable direct supply.

We provide online Q/A and troubleshooting support and technical advice service.

Each machine 100% tested well before ship out.

Technical Support
Kimi Liu's Mobile/WhatsApp: +8613510675756
E-mail: kimi@charmhigh-tech.com
YouTube: @KimiLiuCharmhigh

If you want to see more information and videos, please contact us by E-mail. We will respond to you at the first time.
