Charmhigh 250DS Automatic Wave Soldering Machine Lead Free For PCB Assembly Line

Charmhigh 250DS Automatic Wave Soldering Machine Lead Free For PCB Assembly Line
Charmhigh 250DS Automatic Wave Soldering Machine Lead Free For PCB Assembly Line Charmhigh 250DS Automatic Wave Soldering Machine Lead Free For PCB Assembly Line

Large Image :  Charmhigh 250DS Automatic Wave Soldering Machine Lead Free For PCB Assembly Line

Product Details:
Place of Origin: China
Brand Name: Charmhigh
Certification: CE
Model Number: 250DS
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: $5500
Packaging Details: plywood box
Delivery Time: 4-7 days
Payment Terms: TT; Wester union
Supply Ability: 1000 Per month

Charmhigh 250DS Automatic Wave Soldering Machine Lead Free For PCB Assembly Line

Description
Controlling Method: Touch Screen+PLC Substrate Width: 50-250mm (W)
Wave No.: 2pcs Net Weight: 800kg
High Light:

PCB wave soldering equipment

,

Automatic Wave Soldering Machine For PCB

,

Lead Free PCB Wave Soldering Machine

Charmhigh 250DS Automatic Lead-Free Wave Soldering Machine PCB Assembly Line



Product Description:

1. Adopts long-life electric heating tube with casing embedded structure, easy maintenance and replacement.Use new insulation materials.

2. Adopts high precision, integrated type imported brand temperature control closed loop PID regulation. Accurate temperature controlling, high reliability.

3. Transmission speed uses LCD digital governor control, stepless adjustable, easy to control.

4. Adopts very economical low-pressure atomizedcoating. Fully automatic detection of PCB scanning spray.

5. Hydraulic overall clamshell structure. Large observation window, simple shape, easy maintenance.

6. Claw made of titanium alloy. Durable, not deformed, good consistency, keep the PCB smooth welding.

7. Brand stir-flow motor with inverter to achieve smooth stepless speed regulation to ensure the wave soldering’s stationary.

8. Efficient far infrared preheater, high thermal efficiency.

9. Nozzle, motor, inverter, temperature controller, sensors, solenoid valves, optoelectronic eyes, relaysare brand-name products.



Specification

Item 250DS
Controlling Method Touch Screen+PLC
Transmission Motor 1P AC220V 60W
Transmission Speed 300-1500mm/min
Substrate Width 50-250mm (W)
Transmission Height 750±50mm
Wave No. 2pcs
Preheating Zone Power: 6KW, Length: 600mm,One PID Controlling Temperature: Room temperature-180℃
Heating Method hot air
Tin Oven Heating 9KW (cast iron heating plate) (room temperature-300℃)
Tin Oven Capacity 160KG
Wave Height 0-12mm
Wave Motor 3P AC220V 0.18KWx1pcs/2pcs
Finger Cleaning Pump 1P AC220V 6W
Cooling Forced centrifugal blower
Cooling Zone No. 1PC
PCB Transmission Direction L→R(R→L)
Nozzle Moving Motor Air Cylinder
Fluxer Capacity Max5.2L
FluxerPressure 4-7BAR
Soldering Angle 3-7°
Powerv Supply 3P AC380V 50HZ 63A
Total Power/ Operation Power 18KW/4KW
Body Dimensions 1800(L)×1400(W)×1800mm(H)
Shape Dimensions 2500(L)×1400(W)×1800mm(H)
Net Weight 800KG
Exhaust Demand 20CBM/MIN 2(Channel) Φ240mm

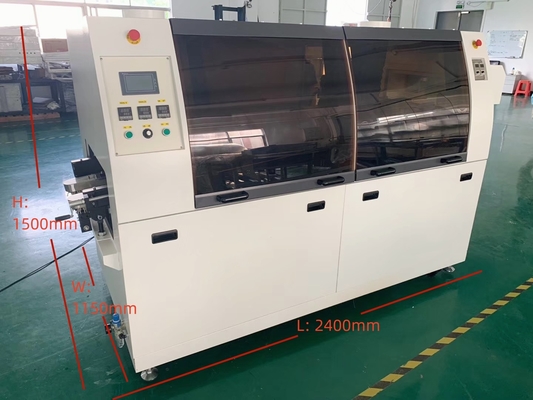

Charmhigh 250DS Automatic Wave Soldering Machine Lead Free For PCB Assembly Line 0

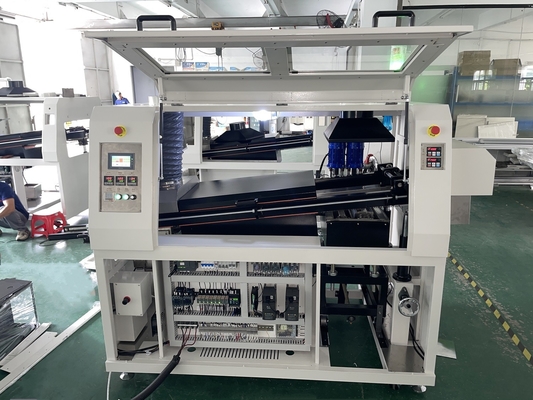

Charmhigh 250DS Automatic Wave Soldering Machine Lead Free For PCB Assembly Line 1

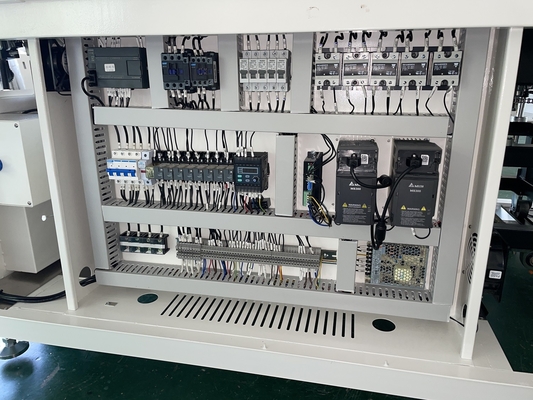

Charmhigh 250DS Automatic Wave Soldering Machine Lead Free For PCB Assembly Line 2

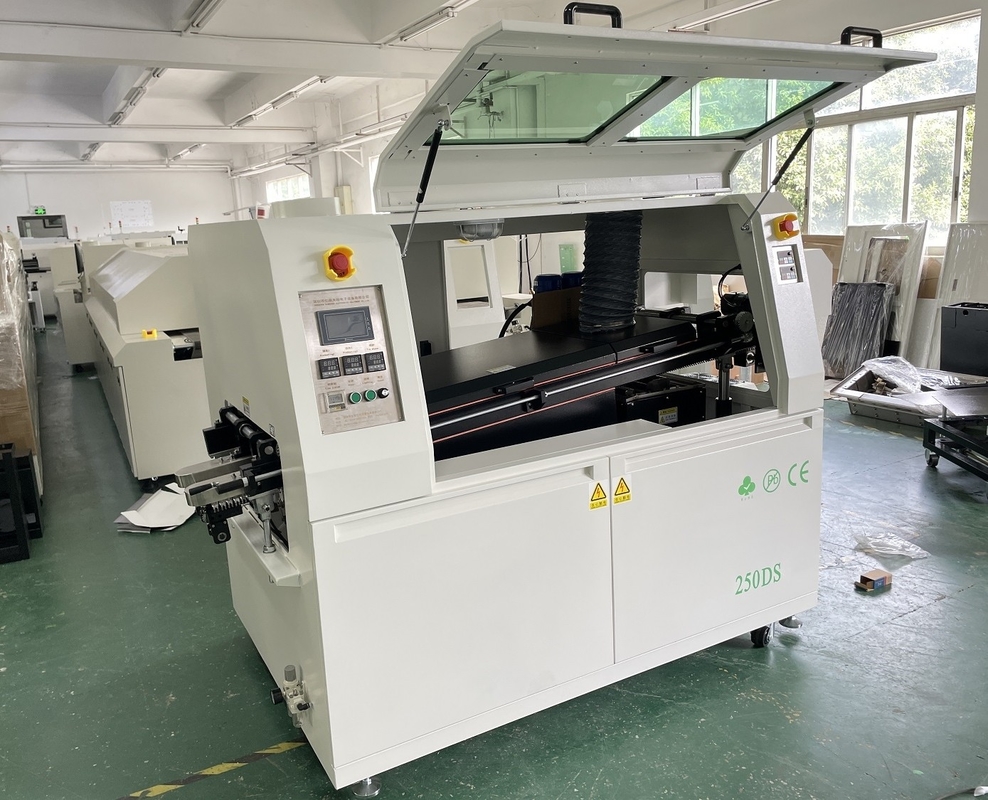

Charmhigh 250DS Automatic Wave Soldering Machine Lead Free For PCB Assembly Line 3
