Product Details:
|
| Material: | Aluminum | Table Size: | 300*400mm |
|---|---|---|---|
| Printing Size: | 250*400mm | Stencil Size: | No Limit, As Long As Printer Can Clamp It |
| Type: | Manually Operation | Gross Weight: | 23kg |
| High Light: | 3040 Solder Paste Stencil Printer,PCB Solder Paste Stencil Printer,3040 SMT Manual Solder Paste Printer |
||

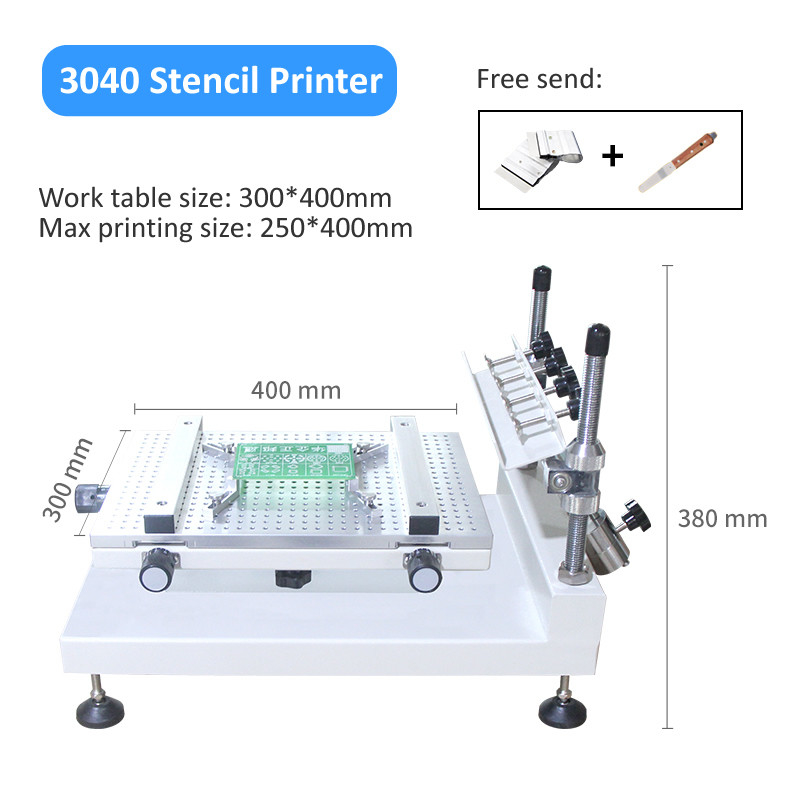

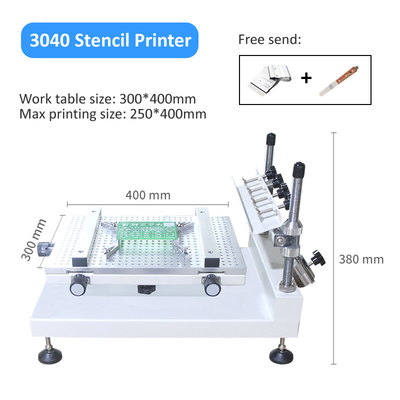

High Precision Stencil Printer ( 3040 ) Work with SMT Pick and Place Machine / Manually
Best seller! Free Shipping DHL/ UPS. Free gift: one scraper & stirring knife
Here is Youtube video for 3040 stencil printer:
3040 stencil printer - installation:
www.youtube.com/watch?v=K4we2-hehxA
How to use 3040 Stencil Printer:
www.youtube.com/watch?v=sBEDs2-oq2o&t=71s
Purcahse from our Online store directly (by PayPal):
3040 stencil printer catalog download: High Preicision Stencil Printer 3040.pdf
Description:
1.The same platform as printer can be select able,easy to locate both single and double sides o f PCB board;
2.high flexibility ensure high printing precision;
3.The steel stencil can be rotated 30 degrees at most,and the precision can be kept all the w ay when repeat works, can be comparable with autom atic machine;
4.Using the way of steel stencil movement to adj ust the best position, combining with the fine adjustment of X axis Y axis to correct position; convenient and efficient;
5.The frame made of thickened sheetmetal,finest material,good quality with outstanding durability;
| Work table size | 300*400mm |
| Print size | 250*400mm |
| Max net frame size | 370*470mm |
| Printer way | manual |
| Thickness of the substrates | 0-80mm |
| The workbench adjust volume | 10mm, Horizontal Angle adjustment |
| Printing platform height | 220mm |
| repeated accuracy | ±0.01mm |
| locate mode | Benchmark or hole shape |
| Dimension | 540*370*350 mm |
| Packing size | 630*450*480mm |
| Weight | NW.22Kg GW.23Kg |
100% high feedback from customers:
Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machine, factory reliable direct supply.
We provide online Q/A and troubleshooting support and technical advice service.
Provide one to one after-sale service. Each machine 100% test well before ship out.
