3040 High Precision Stencil Printer , SMT Production Line PCB Assembly Line

3040 High Precision Stencil Printer , SMT Production Line PCB Assembly Line
3040 High Precision Stencil Printer , SMT Production Line PCB Assembly Line
3040 High Precision Stencil Printer , SMT Production Line PCB Assembly Line 3040 High Precision Stencil Printer , SMT Production Line PCB Assembly Line 3040 High Precision Stencil Printer , SMT Production Line PCB Assembly Line 3040 High Precision Stencil Printer , SMT Production Line PCB Assembly Line 3040 High Precision Stencil Printer , SMT Production Line PCB Assembly Line

Large Image :  3040 High Precision Stencil Printer , SMT Production Line PCB Assembly Line

Product Details:
Place of Origin: China
Brand Name: Charmhigh
Certification: CE
Model Number: 3040
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $430 including shipping DHL
Packaging Details: wooden box
Delivery Time: 1-2 days
Payment Terms: T/T; PayPal, Western Union
Supply Ability: 200 Per month

3040 High Precision Stencil Printer , SMT Production Line PCB Assembly Line

Description
PCB: Best Quality In China Max Print Size: 250*400mm
Max Stencil Size: 370*470mm Table Size: 300*400mm
Dimension: 54*38*39cm Clamping Thickness: 0-80mm
Layer: Suitable For Double Layer PCB Net Weightr: 21kg
Highlight:

Charmhigh PCB Assembly Line

,

Charmhigh SMT Production Line

,

3040 High Precision Stencil Printer

Hottest 3040 High Precision Stencil Printer, Solder Paste Pringting Machine, SMT Production Line



Video: 3040 stencil printer - installation:
www.youtube.com/watch?v=K4we2-hehxA



Video: How to use 3040 Stencil Printer:
www.youtube.com/watch?v=sBEDs2-oq2o&t=71s



Purcahse from our Online store directly (by PayPal):

https://www.charmhigh-smt.com/sale-446508-high-precision-stencil-printer-3040-smt-manual-solder-paste-printer-silk-screen-printer.htm



3040 stencil printer catalog download: High Preicision Stencil Printer 3040.pdf


Description:
The platform can be rotated 30 degrees at most, and the precision can be kept all the way when repeat works. Easy to locate PCB board, high flexibility ensure high printing precision.The brackets using the bolt bar to adjust the height, convenient for controlling the thickness of PCB.



Work table size 300*400mm
Print size 250*400mm
Max net frame size 370*470mm
Printer way manual
Thickness of the substrates 0-80mm
The workbench adjust volume 10mm, Horizontal Angle adjustment
Printing platform height 190mm
repeated accuracy ±0.01mm
locate mode Benchmark or hole shape
Dimension 540*370*350 mm
Packing size 660*500*280mm
Weight NW.21Kg GW.22Kg



Adavantages:

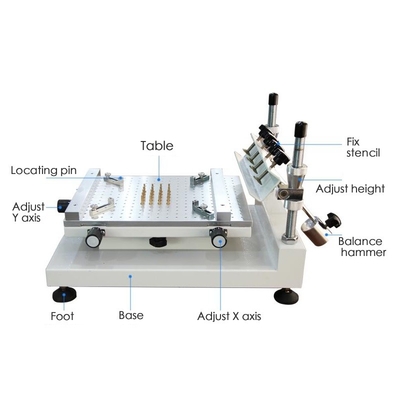

1. PCB positioning using the positioning pins, fixing lever and fixing plate operation, convenient location, and ensure repeat accuracy.

2. Board correction by stencil move, combined with X, Y axis trimming correction, which is convenient.

3. Height can be adjusted up and down screw, easy to control the PCB thickness and printing solder paste.

4. Accessories: fixed link 30pcs, positioning holder 4pcs, the fixing plate 2, and a set of tools.

5. Optional special table (3040), middle part can be placed a print board, great space saving, easy to operate.



100% real pictures buyer send us as feedback!

Very high quality!

3040 High Precision Stencil Printer , SMT Production Line PCB Assembly Line 0

3040 High Precision Stencil Printer , SMT Production Line PCB Assembly Line 1

3040 High Precision Stencil Printer , SMT Production Line PCB Assembly Line 2



3040 High Precision Stencil Printer , SMT Production Line PCB Assembly Line 3

3040 High Precision Stencil Printer , SMT Production Line PCB Assembly Line 4

Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machine, factory reliable direct supply.
We provide online Q/A and troubleshooting support and technical advice service.

Provide one to one after-sale service. Each machine 100% tested well before ship out.
